E.24 Part. N. 8000 H1344 (10-2009)
GENERAL OPERATIONS
TE-SMR

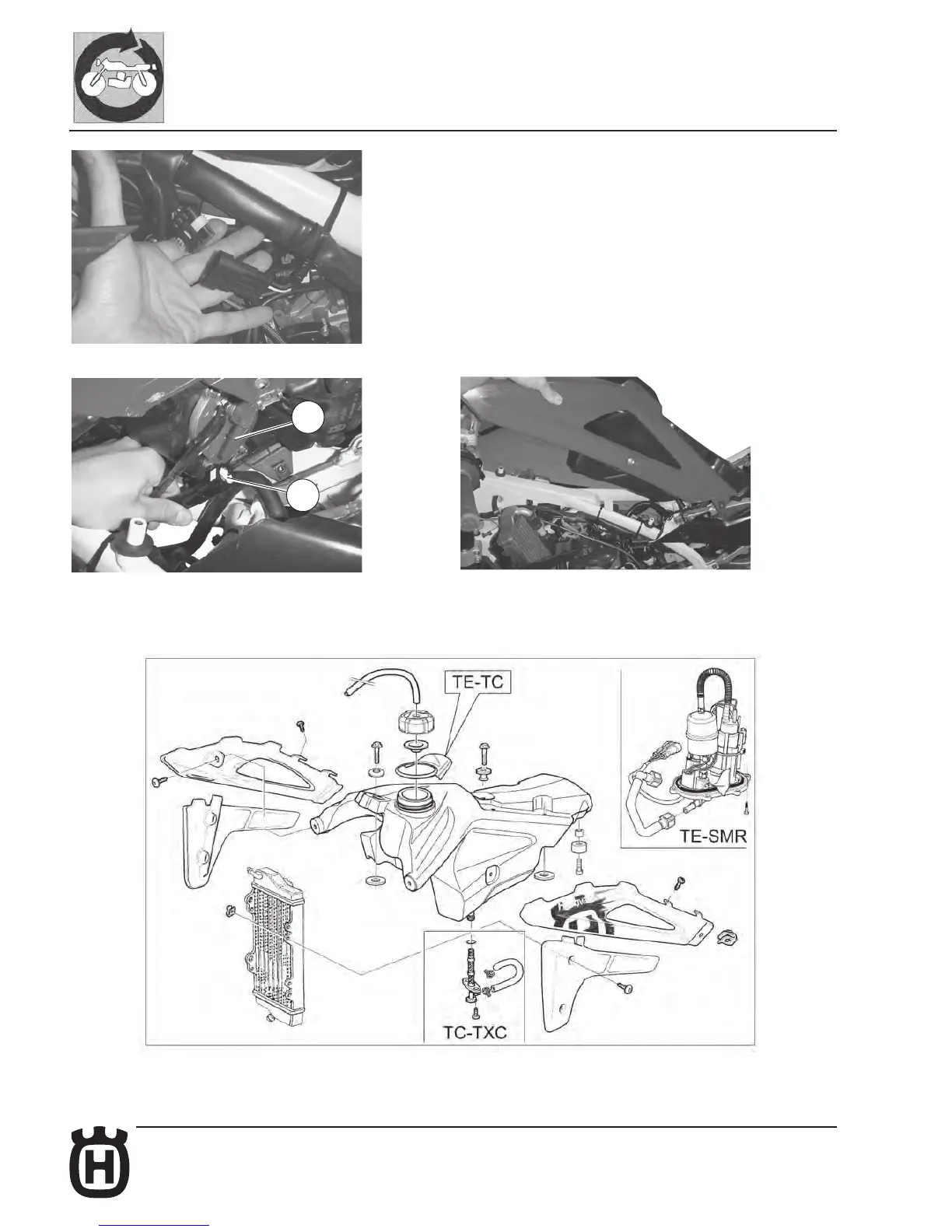

Remove the vent pipe (1) from the fuel tank cap. Unscrew the fastening screw
(6) of the fuel tank. Remove the screws (4) holding the conveyors to the tank;
remove the conveyors (7), the screws (5) holding spoilers (8) to radiators. Remove
the spoilers. Disconnect the connector of the fuel pump from the main cable.
Disconnect the feed line (B) from the outlet tting (C) on the fuel pump on the
lower rear part of the tank the feed line. Extract the tank.
C
B
