H.25Part. N. 8000 H1344 (10-2009)
ENGINE REASSEMBLY

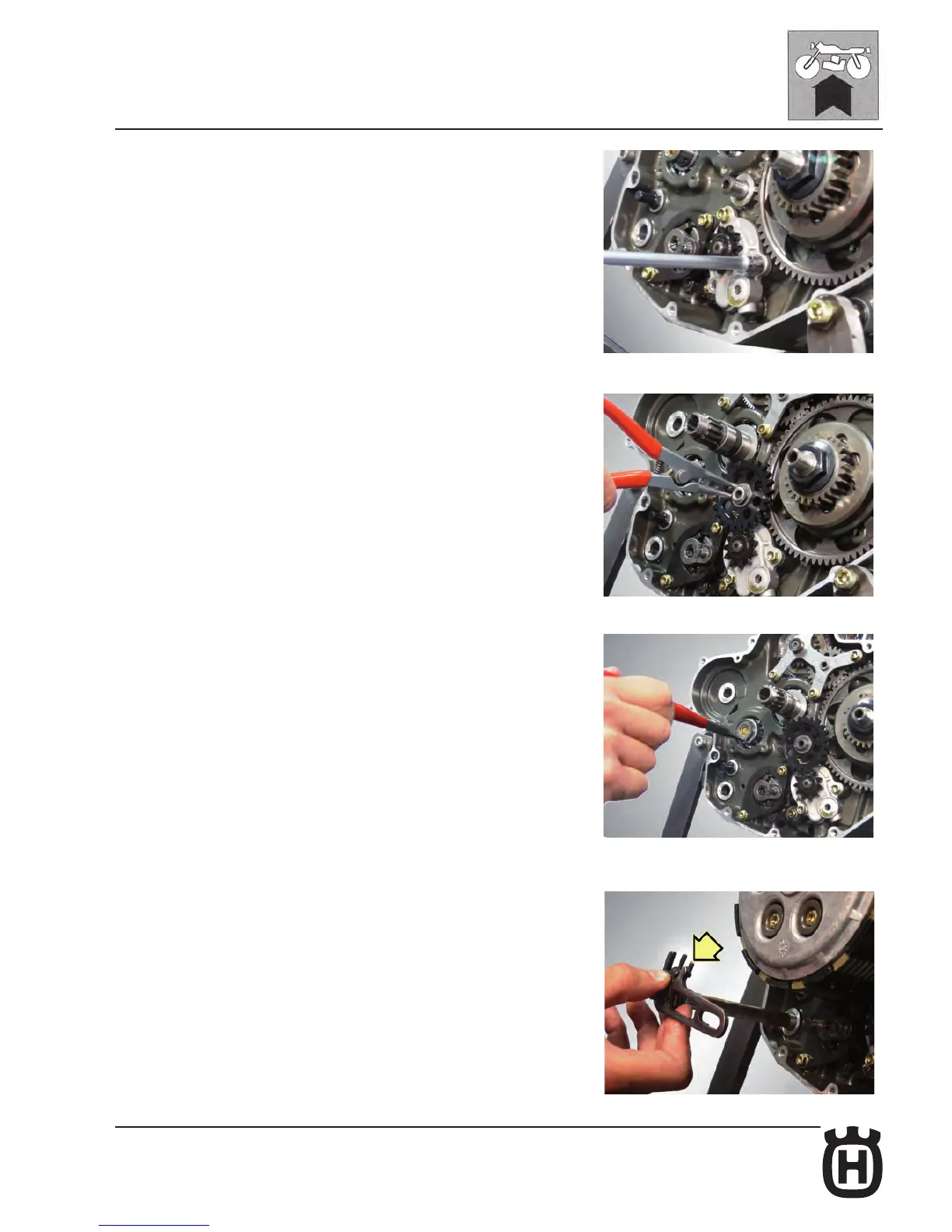

Mount the oil pump (8 Nm-0,8 Kgm-5.8 ft/lb). Mount the oil pump driven gear
and the circlip. Mount the circlip on the auxiliary shaft.
Reassembly of gear shaft
Check the shaft for wear in the gear shift mechanism groove.
Mount the spring and lubricate the shaft with motor oil. Insert the shaft in the
crankcase in order to align the spring to the spring selector pin.
