ELECTRIC SYSTEM, DIGITAL INSTRUMENT

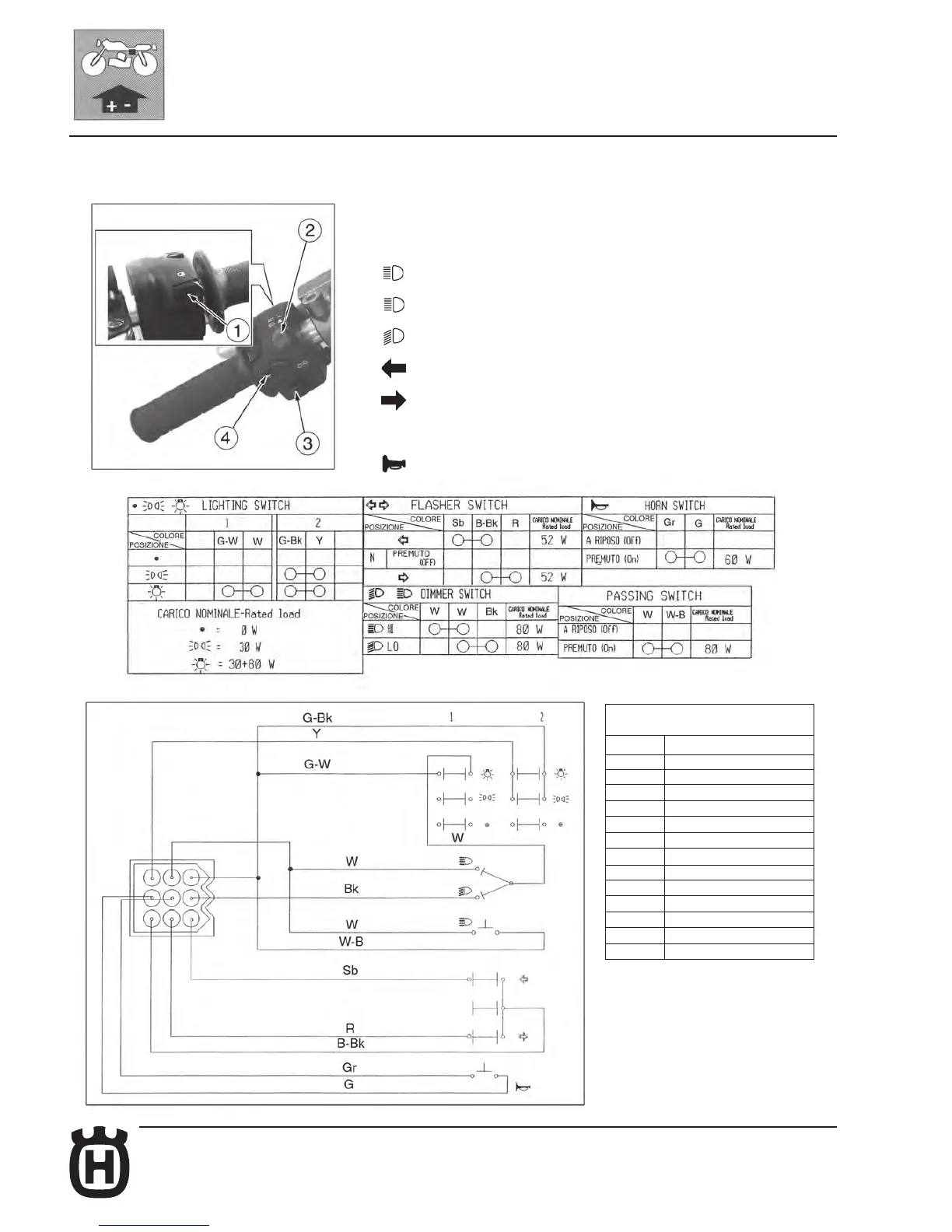

3- L.H. Commutator
TE-SMR
1. High beam ash (self cancelling)
2. Selection control high beam
Selection control low beam
3. Left turm signals (automatic return)
Right turm signals (automatic return)
To deactivate the turn signals, press the control lever after its
returning to center.
4. Warning horn
Cable colour coding
B Blue
Bk Black
B-Bk Blue-Black
B-W Blue-White
G Green
G-Bk Green-Black
G-W Green-White
Gr Grey
Y Yellow
R Red
Sb Sky blue
W White
W-B White-Blue
W-Bk White-Black
