F.9Part. N. 8000 H1344 (10-2009)
ENGINE DISASSEMBLY

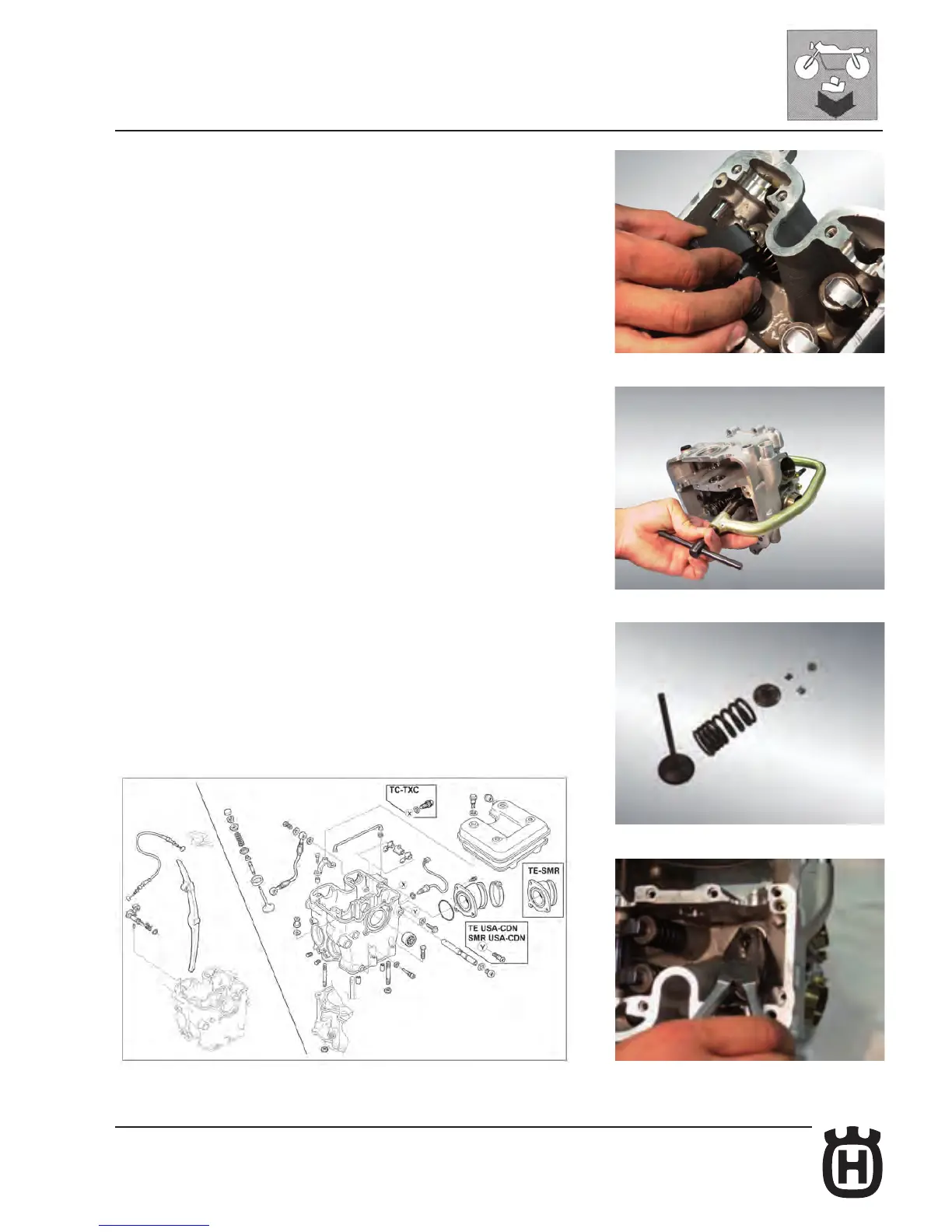

Using a tweezer, remove the valve adjusting pads.
Use a valve spring compressor tool to remove the valves. Be careful not to dam-
age the gasket surfaces or the combustion chamber.
Make sure that the valve spring compressor is always straight, otherwise the
valve stem can bend.
To prevent loss of tension, do not compress the valve springs more than neces-
sary. Mark all parts, so that they can be reassembled correctly.
If the valve cotters have made a burr on the valve stem, remove it before remov-
ing the valve.
Remove the sealing gaskets from the valve guides.
Remember to replace the gaskets with new ones when reassembling.
