G.19Part. N. 8000 H1344 (10-2009)
ENGINE OVERHAULING
Clutch checking

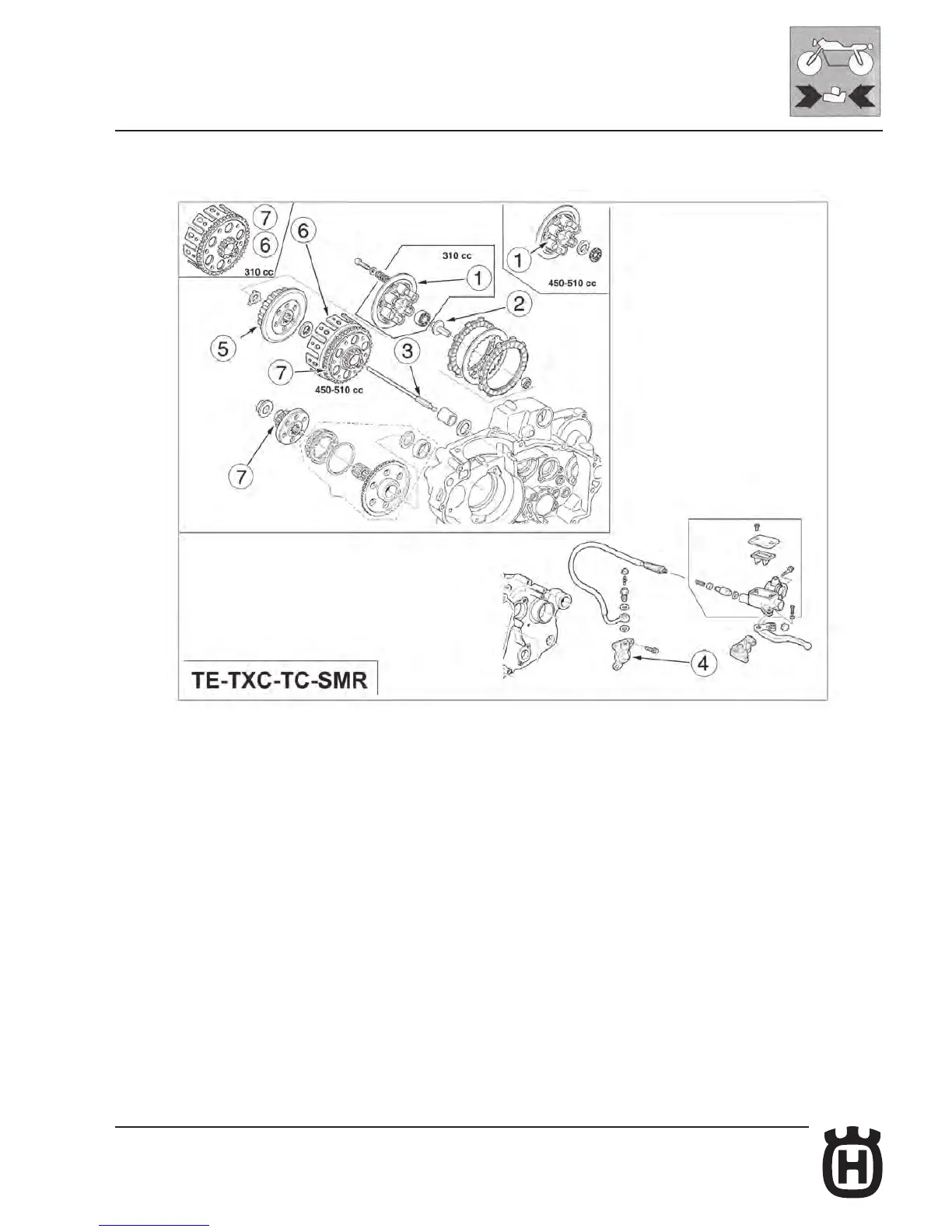

1- Clutch disc pressure plate, 2- Clutch plate, 3- Clutch disengagement rod, 4- Clutch slave cylinder: Check that these parts
are not worn or broken. lf not, replace the part.
5- Clutch disc hub: check the housing grooves of discs without friction material for wear or failure. If worn or breaked, replace the
part.
6- Clutch disc housing: Check the housing grooves of discs with friction material for wear or failure. Check the needle bearings seats
for wear. If worn or breaked, replace the clutch disc housing.
7- Set of matched primary: Check the teeth gear for wear and failure. If worn or breaked, replace it.
