I.39
Part. N. 8000 H1344 (10-2009)
FRONT SUSPENSION

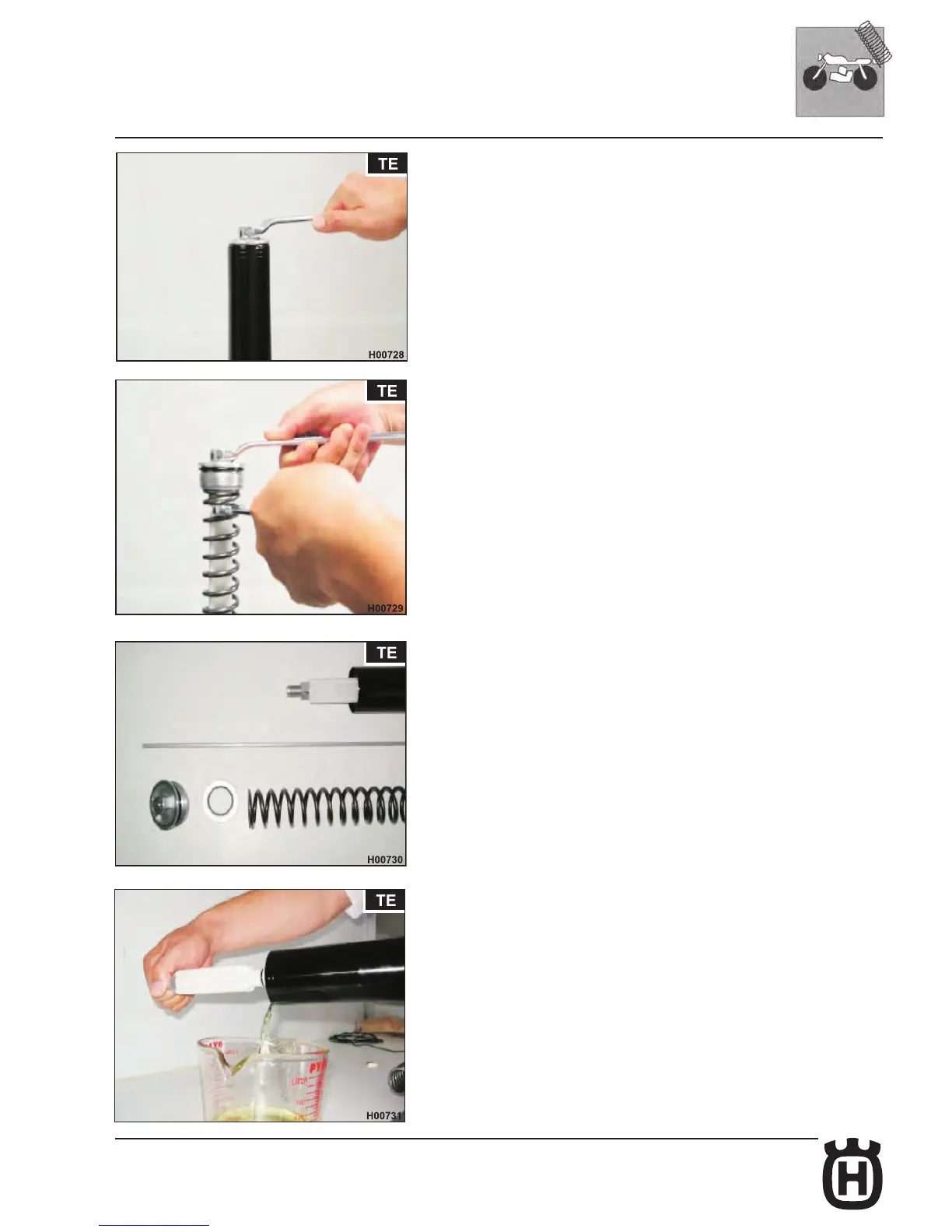

Loosen the upper cap of each stem guide.
(N.B.: It’s a good rule to loosen the caps slightly before removing the stems from
the motorcycle).
Loosen the upper cap and the nut with a screwdriver.
Remove the upper cap, the spring guide cap, the spring and the inner push rod.
Remove the oil.
Move the piston rod back and forth to remove the oil from the cylinder.
