J.4
Part. N. 8000 H1344 (10-2009)
REAR SUSPENSION

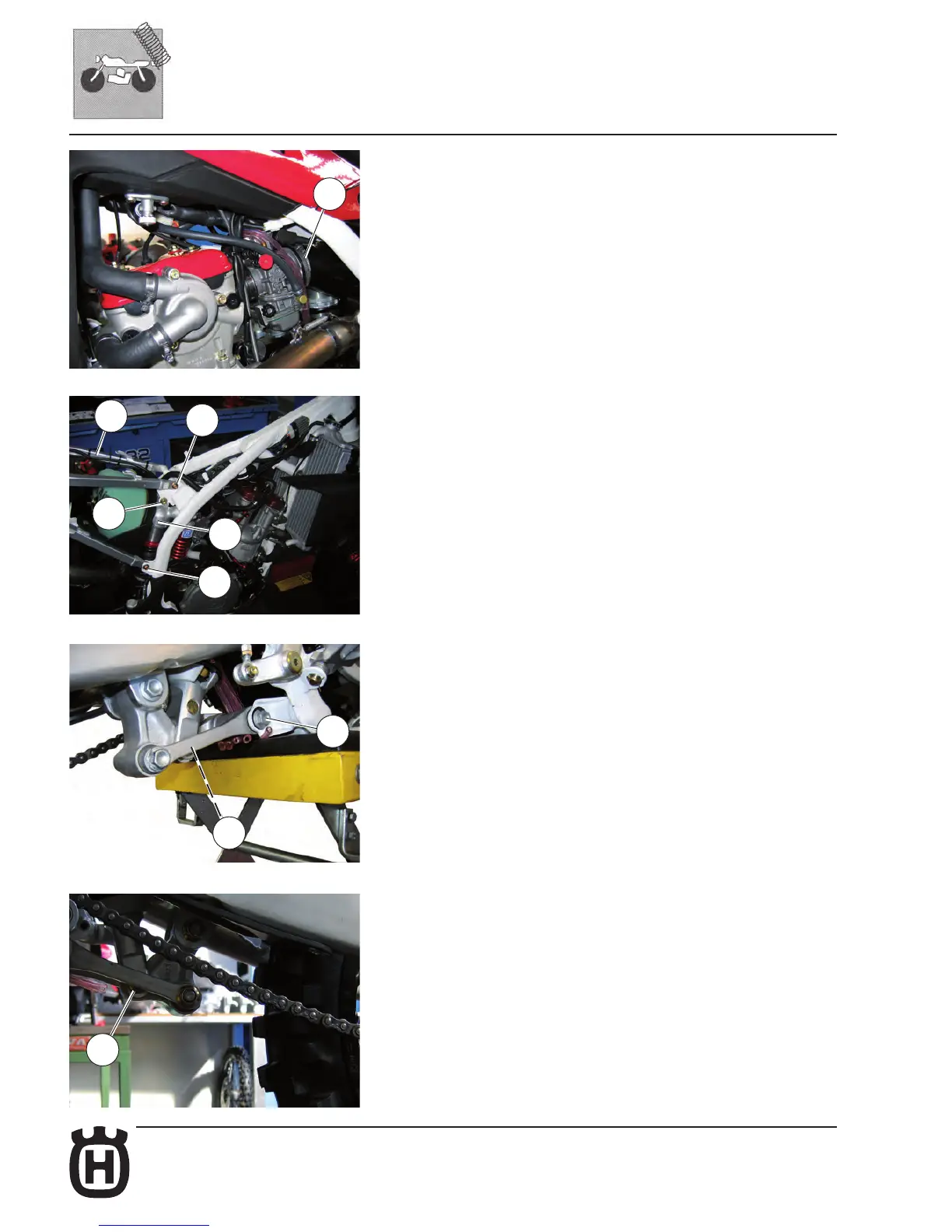

Removing the rear shock absorber
Remove the saddle, the side panels and the silencer as described in chapter
"E’"- General operations (pages E.15-E.16-E.17). Loosen the front clamp (1) of
the tting on the carburettor (TC-TXC) or on the throttle body (TE-SMR).
2
4
7
3
8
5
1
9
Loosen the upper fastening screw (2) of the rear frame (4), remove the lower
fastening screw (3) and turn the rear frame forward making sure not to damage
electric cables. Remove the front xing pin (5) of the suspension tie rod on the
frame, the lower fastening screw (6) of the shock absorber, the upper fastening
screw (7) and then remove the shock absorber (8).
IMPORTANT: when reassembling, place the lower locking nut (9) of the shock
absorber on the LEFT SIDE.
6
