REAR SUSPENSION

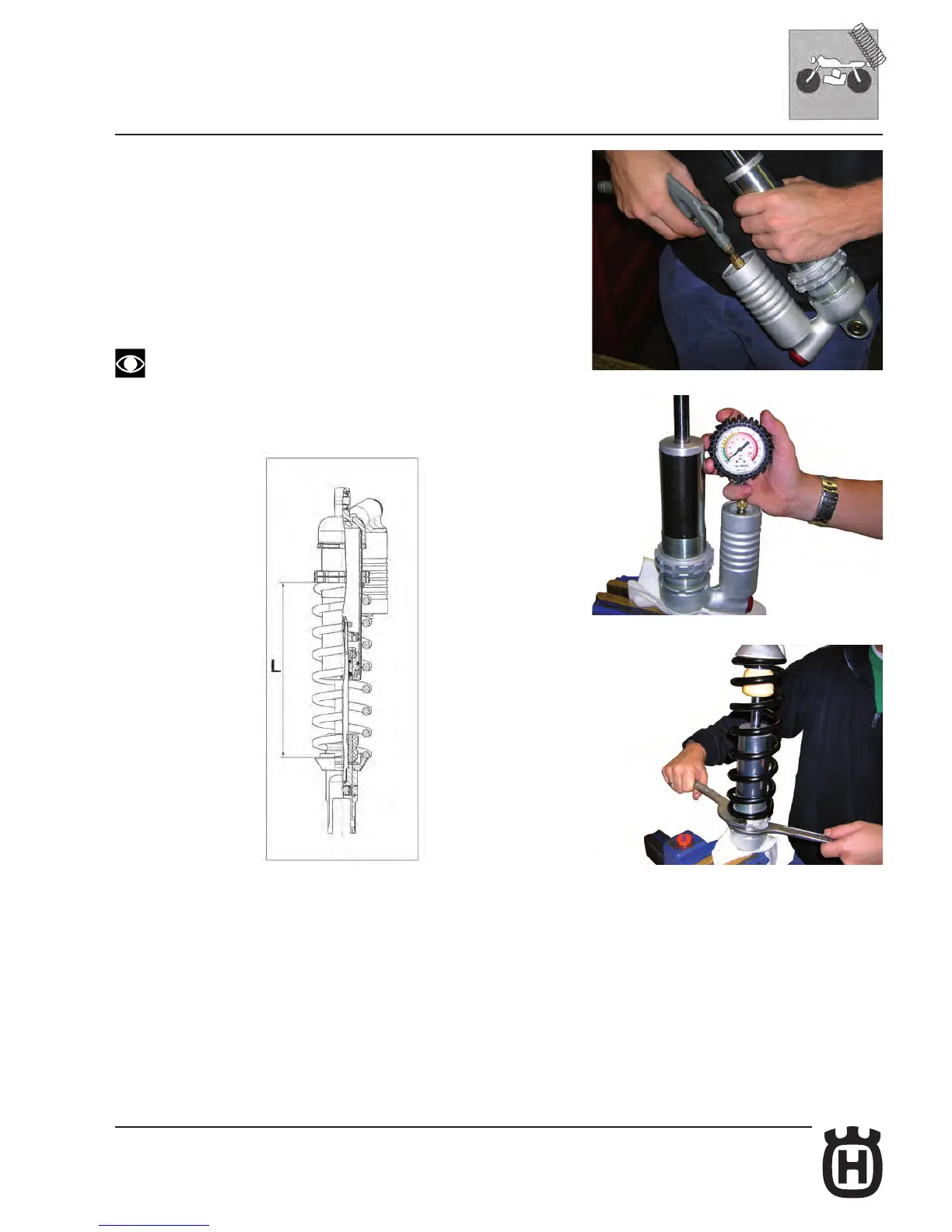

Reassemble the reservoir plug and the valve, t it inside the reservoir, then t the
snap ring into the throat. Insert the nitrogen valve - or the air valve if teh nitrogden
valve is not an hand - using 10-12 bar pressure. Reassemble the cap on the valve
and check to make sure that both air bleeds, or oil leaks, are not present.
Set the plug on the body
Reassembling the end-of-stroke pad and its washer.
When the end-of-stroke pads needs to be replaced, block the forkrod in a vice
using aluminium or bronze jaws, then tighten the connection again using Loctite
and a 50 Nm torque. Reassemble the spring and take it to the initial preload
using the ring nut and the counter ring nut.
The manufacturerdeclines any and all responsability for damages
deriving from operations uncorrectly carried out.
TE, TC, TXC: L= 243,5÷246,5 mm
(9.58÷9.70 in.)
SMR: L= 234,5÷237,5 mm (9.23÷9.35 in.)
