M.9Part. N. 8000 H1344 (10-2009)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT
CHARGING SYSTEM (TXC)

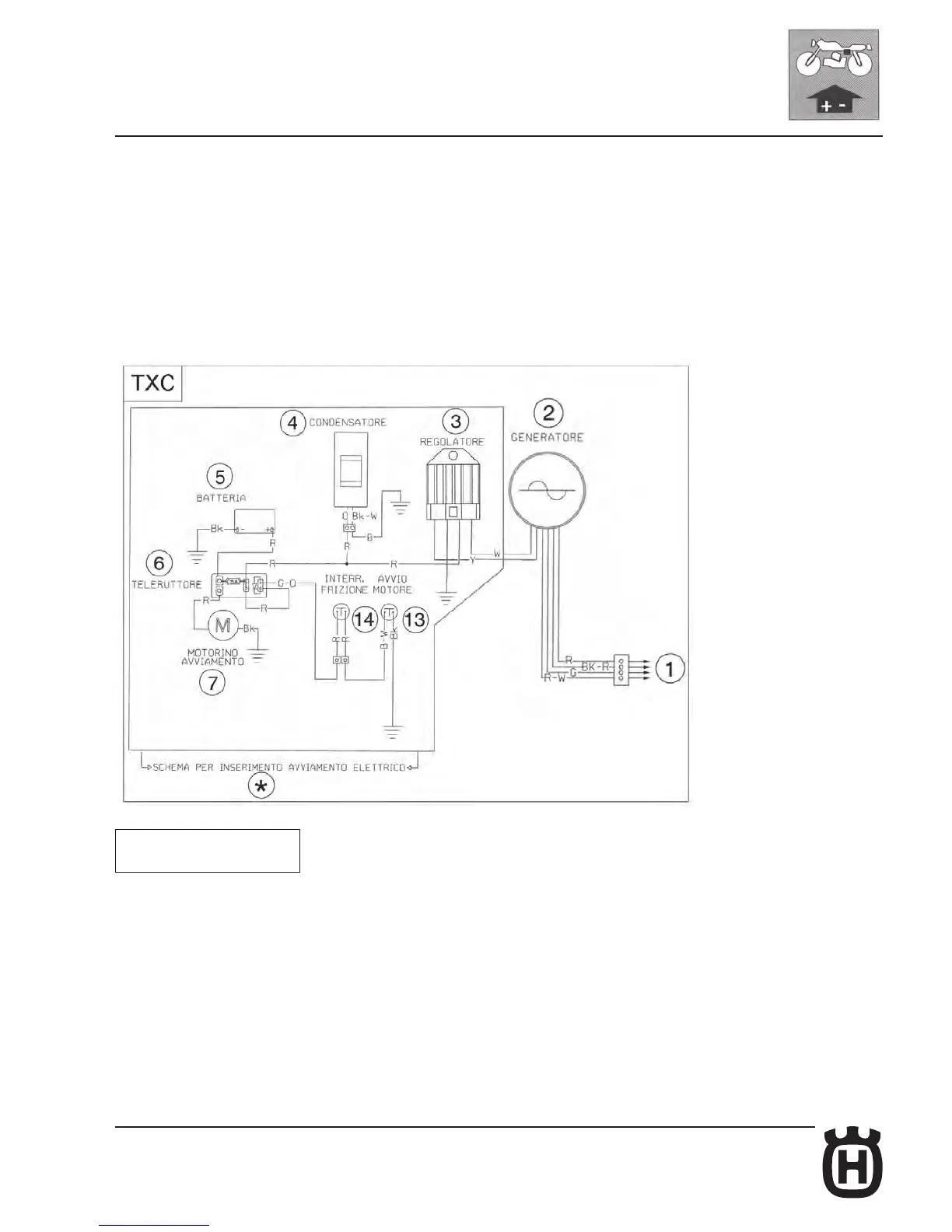

The charging system consists of:
- Alternator (2);
- Voltage regulator-rectier (3);
- Condenser (4);
- Battery (5).
The AC current produced by the alternator is converted by the
regulator-rectier into DC current.
The regulator-rectier prevents overcharging of the battery and
changes the AC current to the DC current.
All these components maintain a constant voltage and prevent
the battery from overcharging.
For the key to electrical cables
see pages M.3.
