M.21Part. N. 8000 H1344 (10-2009)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

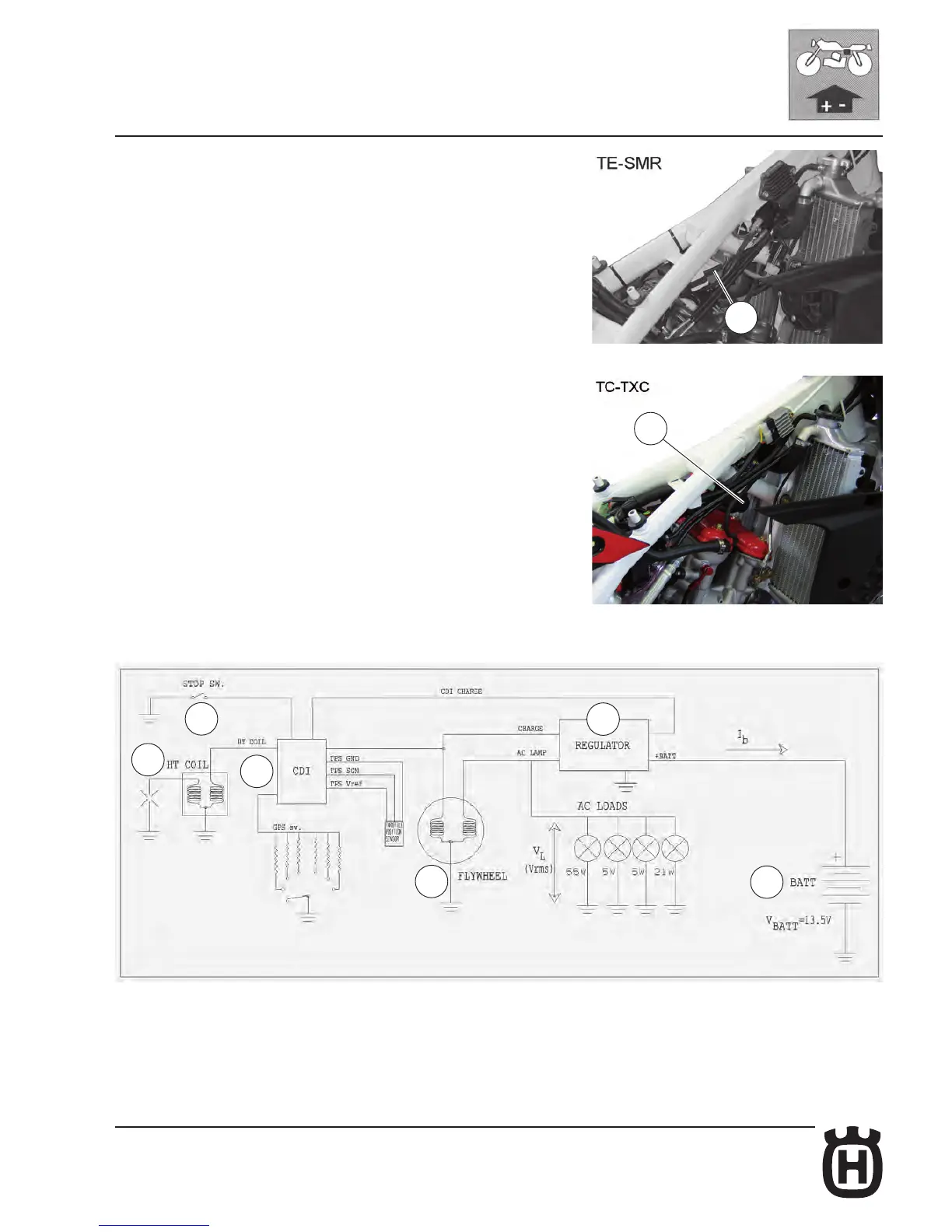

Electronic unit (ECU)
To gain access to the electronic unit (1) remove the saddle and fuel tank (see
pages E.15-E.23).
This unit consists of a condensor, a pick-up signal rectier circuit, and ignition
advance circuit synchronised with the pick-up signal and a switching circuit for
discharging the condensor.
ELECTRONIC UNIT C.D.I. WIRING DIAGRAM (ECU) (TC-TXC)
1
1
1. Electronic unit
2. Alternator
3. Voltage regulator
5. Battery
10. Electronic coil
12. Engine stop
10
12
1
2
3
5
