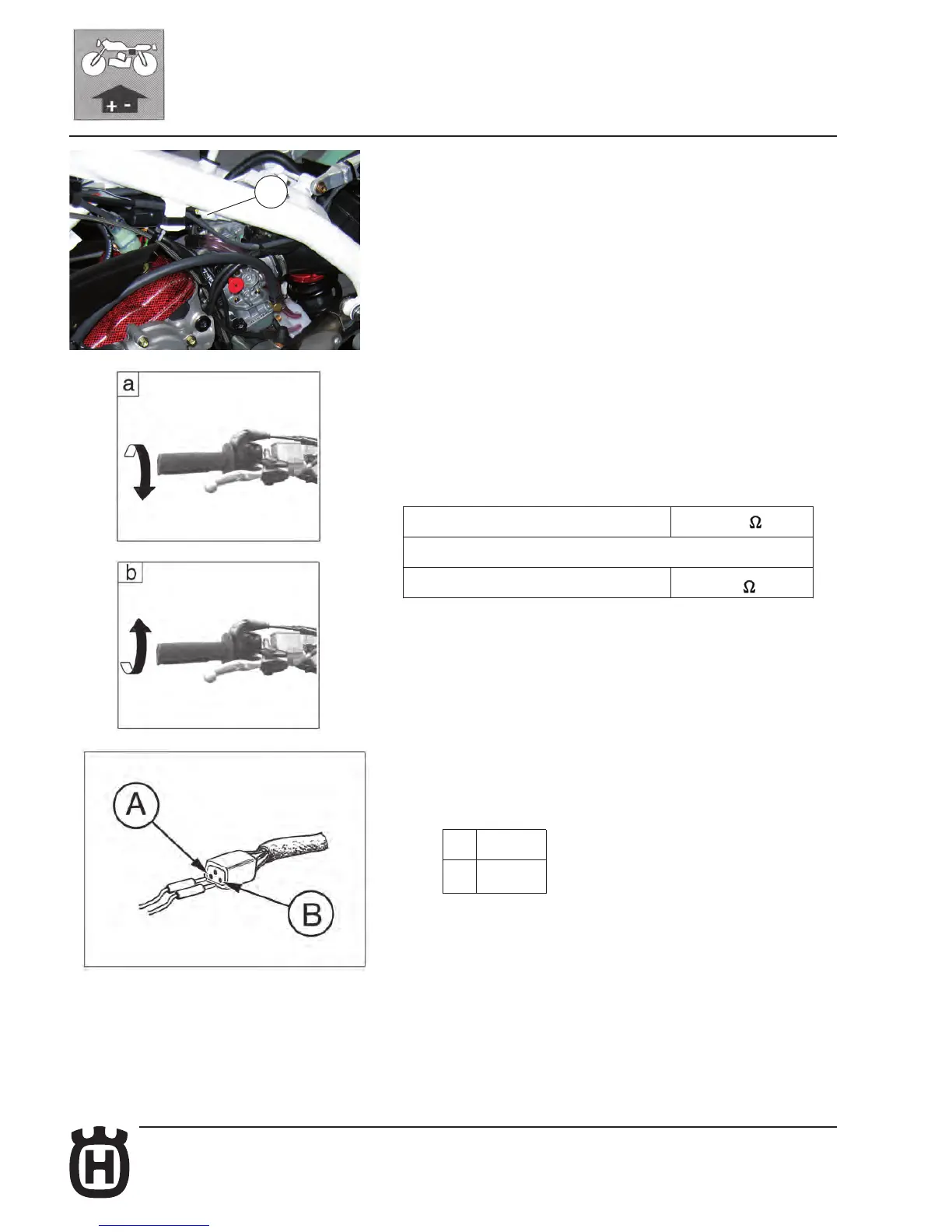

Throttle Position Sensor checking (TPS: Throttle Position Sensor)
(TC-TXC)
Set the tester in “Ohm” position then detach the throttle position sensor cable
(1) from the main wiring harness. Set the two tester terminals in corrispondence
of YELLOW (A) and BLACK (B) cables and check for the correct values (see
table).
A Yellow
B Black
a- throttle control grip in CLOSED position 890-990
b- throttle control grip in COMPLETELY OPEN position
"KEIHIN“ MX 41 3,4÷4,4 K
+/- 5%
