O.4 Part. N. 8000 H1344 (10-2009)
“KIT” ASSEMBLING INSTRUCTIONS
To always have the rear frame (a) fastened in two points, assemble the footrests rst on to one side of the motorcycle then on
the other one.

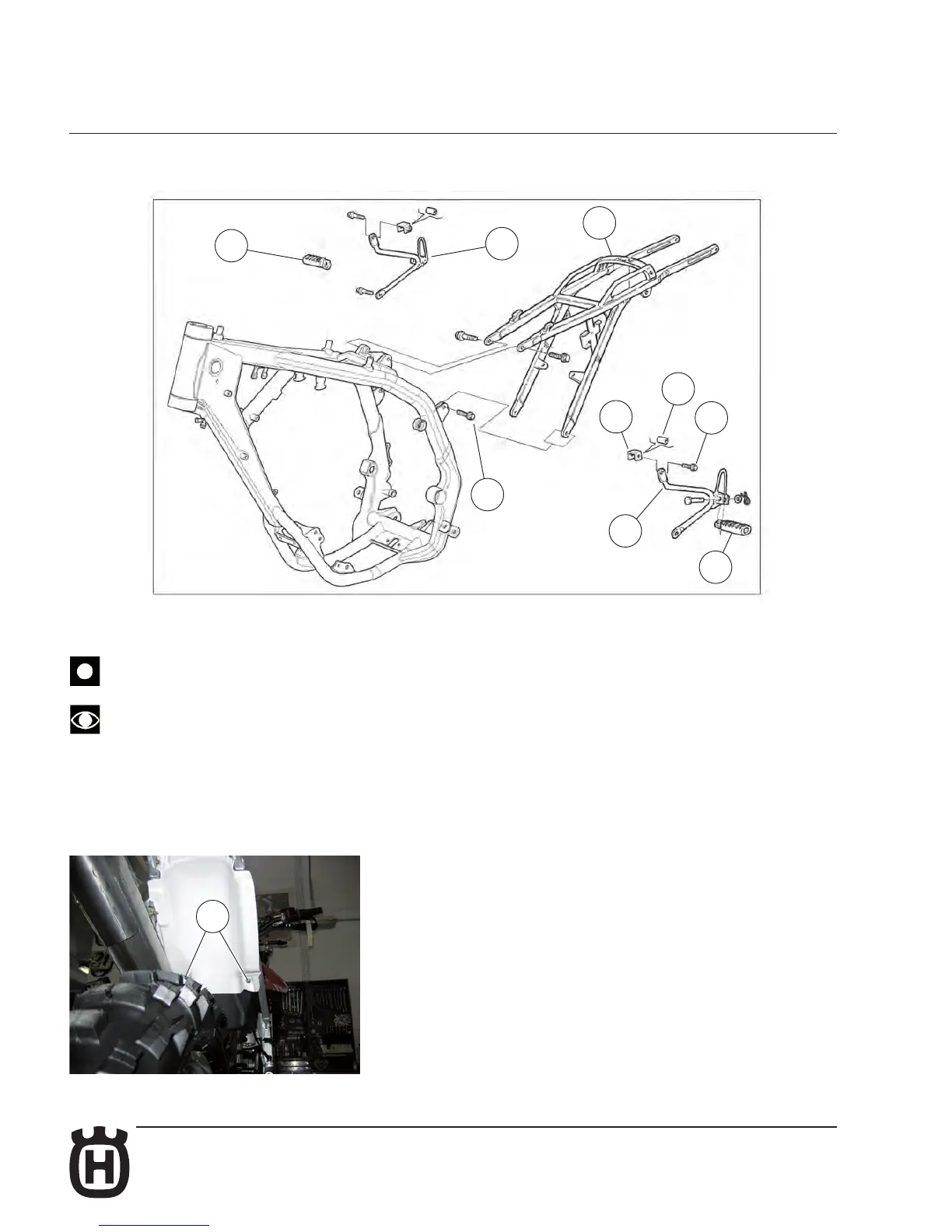

The description refers to the assembly of the left footrest (7), the assembly of the right footrest (8) is symmetrical.
3- Passenger footrest (SMR).
C
7
a
2
5
6
A
D
B
1
Proceed as follow:
- Preliminarily mount the foot-rests (A) and (B) on the relevant supports (C)
and (D);
- Remove the saddle and side panel as shown on page E.15-E.16;
- From both sides, remove the fastening screws of the air lter box (1);
