O.14 Part. N. 8000 H1344 (10-2009)
“KIT” ASSEMBLING INSTRUCTIONS

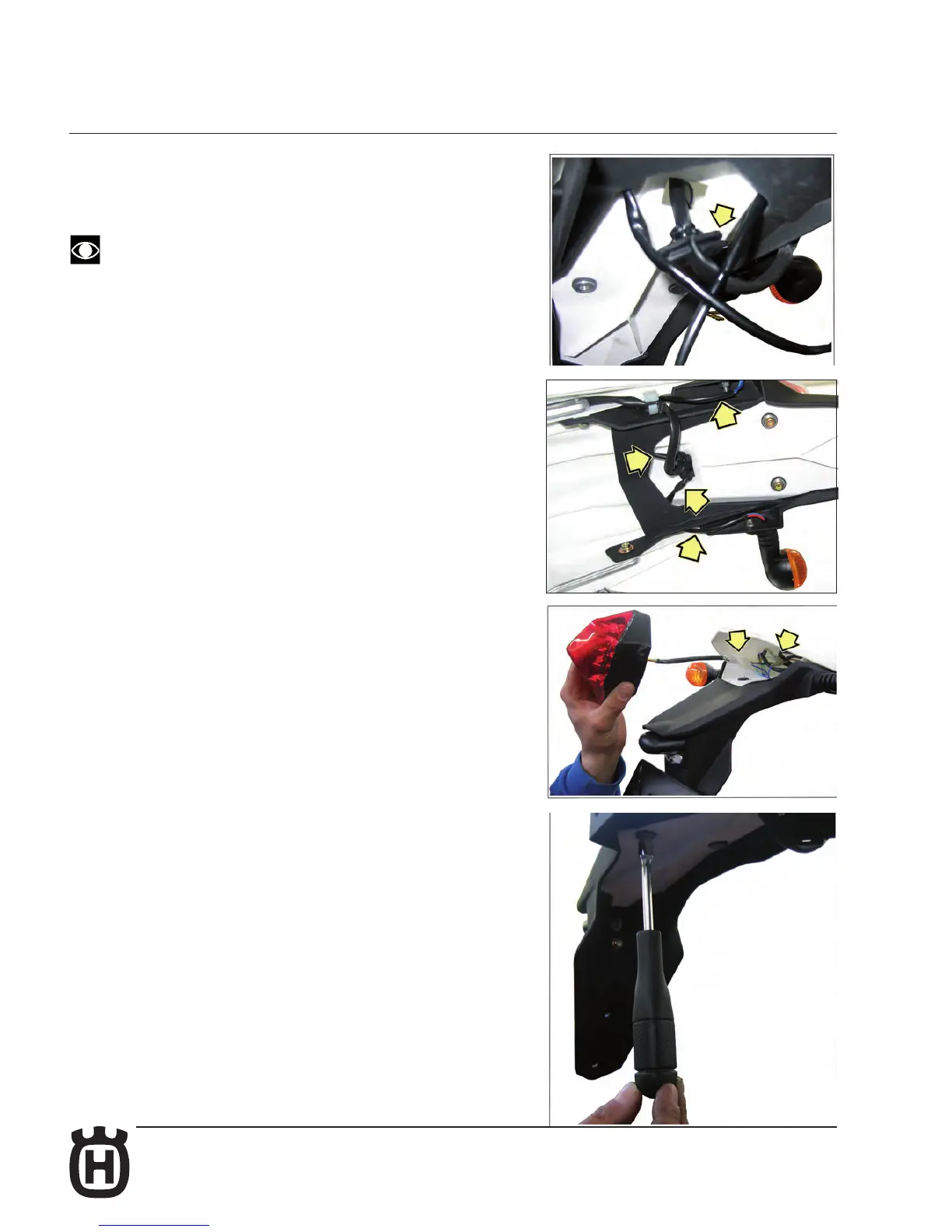

Remove the main wiring harness grommet from the fender, insert into its hole
the turn signal cables then place the grommet into the fender again. Connect
the turn signals and the rear tail light cables to the main wiring harness (see
the wiring diagram on page O.15). Reassemble the rear tail light.
The description refers to the assembly of the right turn signal, the as-
sembly of the left turn signal is symmetrical.
