O.18 Part. N. 8000 H1344 (10-2009)

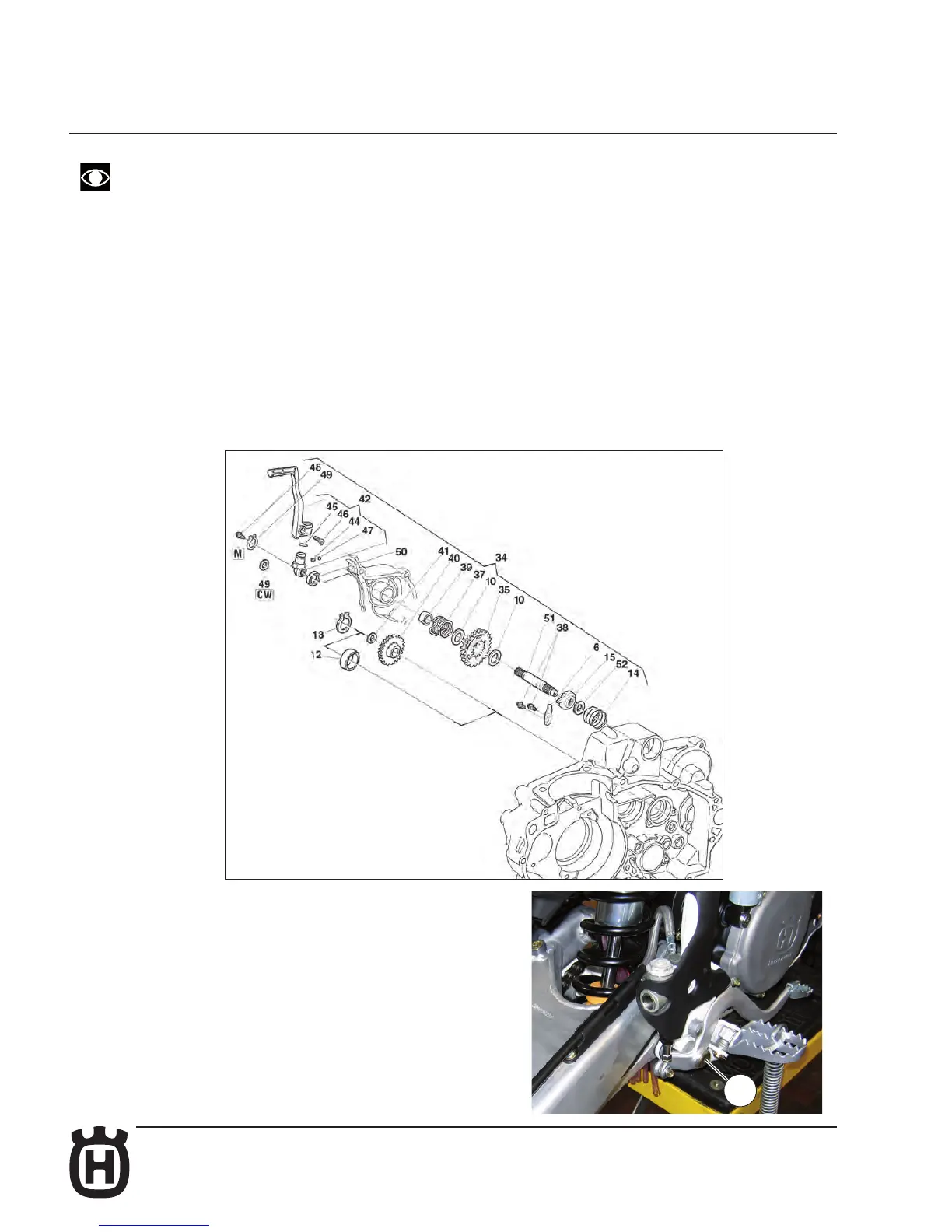

“KIT” ASSEMBLING INSTRUCTIONS
PRELIMINARY OPERATIONS : disconnect the battery from the electrical
system (page E.15), drain the engine oil (page D.21) and reassemble the
engine oil drain plug (8 mm allen wrench; tighten at 25 Nm-18.5 ft/lb). Using
a 6 mm allen wrench, remove the rear brake control pedal bolt.
9- Kick starter kit (34, for SMR)
To effect the above mentioned operations, it is not necessary to remove the engine from the motorcycle.
6- Plate(1)
10- Washer(2)
14- Spring(1)
15- Sliding gear(1)
35- Gear Z=32
37- Spring (1)
38- Screw M6x14 mm (2)
39- Spacer (1)
40- Idling gear Z=30 (1)
41- Thrust washer 0,5 mm (1)
42- Kick start pedal (1)
43- Pedal hub (1)
44- Spring (1)
45- O Ring (1)
46- Screw M6x28 mm(1)
47- Ball 7/32" (1)
48- Screw M6x20 mm(1)
49- Washer (1)
50- Seal ring ø16x25x4 mm (1)
51- Starter crank shaft (1)
52- Shim washer 0,6 mm (1)
A
