O.22 Part. N. 8000 H1344 (10-2009)
“KIT” ASSEMBLING INSTRUCTIONS

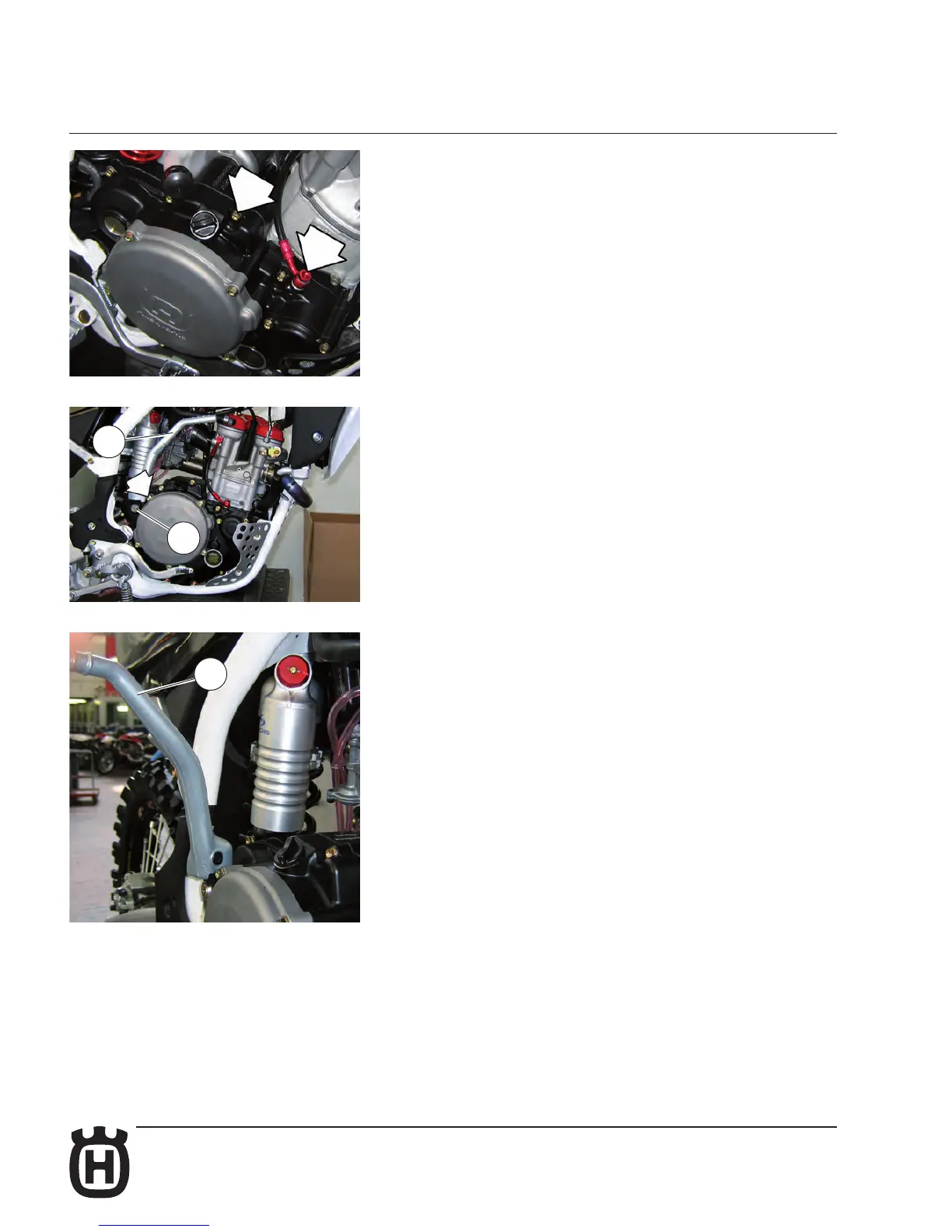

Reassemble R. H. crankcase cover gasket, reassemble cover and tighten 12
fastening screws at 8 Nm-6 ft/lb (8 mm wrench). Reassemble oil line bolt on
crankcase cover (13 mm wrench; tighten at 15 Nm-1,5 kgm-11 ft/lb).
Assemble kick start pedal (42) tightening the screw (48) with 4 mm allen wrench;
(tighten at 8 Nm-0,8 kgm-6 ft/lb); verify that the start pedal, in rest position, does
not touch the crankcase cover.
Check that the pedal (42) works and returns freely.
48
42
42
