“KIT” ASSEMBLING INSTRUCTIONS
Catalyst removal (TE)

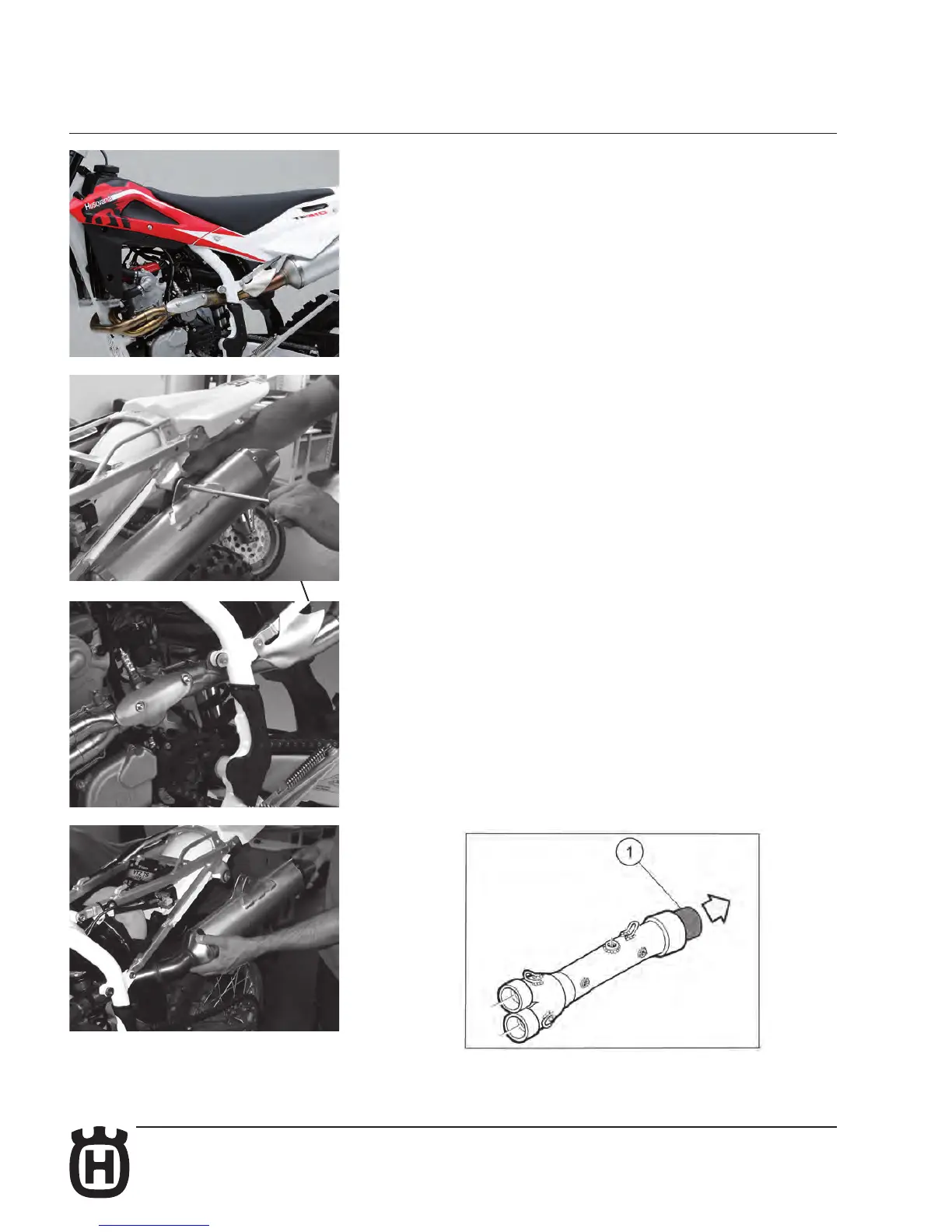

Remove the saddle and L.H. side panel. Using an 8 mm T-shaped spanner on
the outside and a 10 mm T-shaped spanner on the inside, remove the locking
screw of the mufer. Remove the spring between mufer and the central pipe
then with an 8 mm T-shaped spanner remove the front fastening screw of the
central pipe to the frame. Pull out the mufer.
Pull out the catalyst (1) from the exhaust central pipe.
