Y.4 Part. N. 8000 H1344 (10-2009)
FRAME AND WHEELS

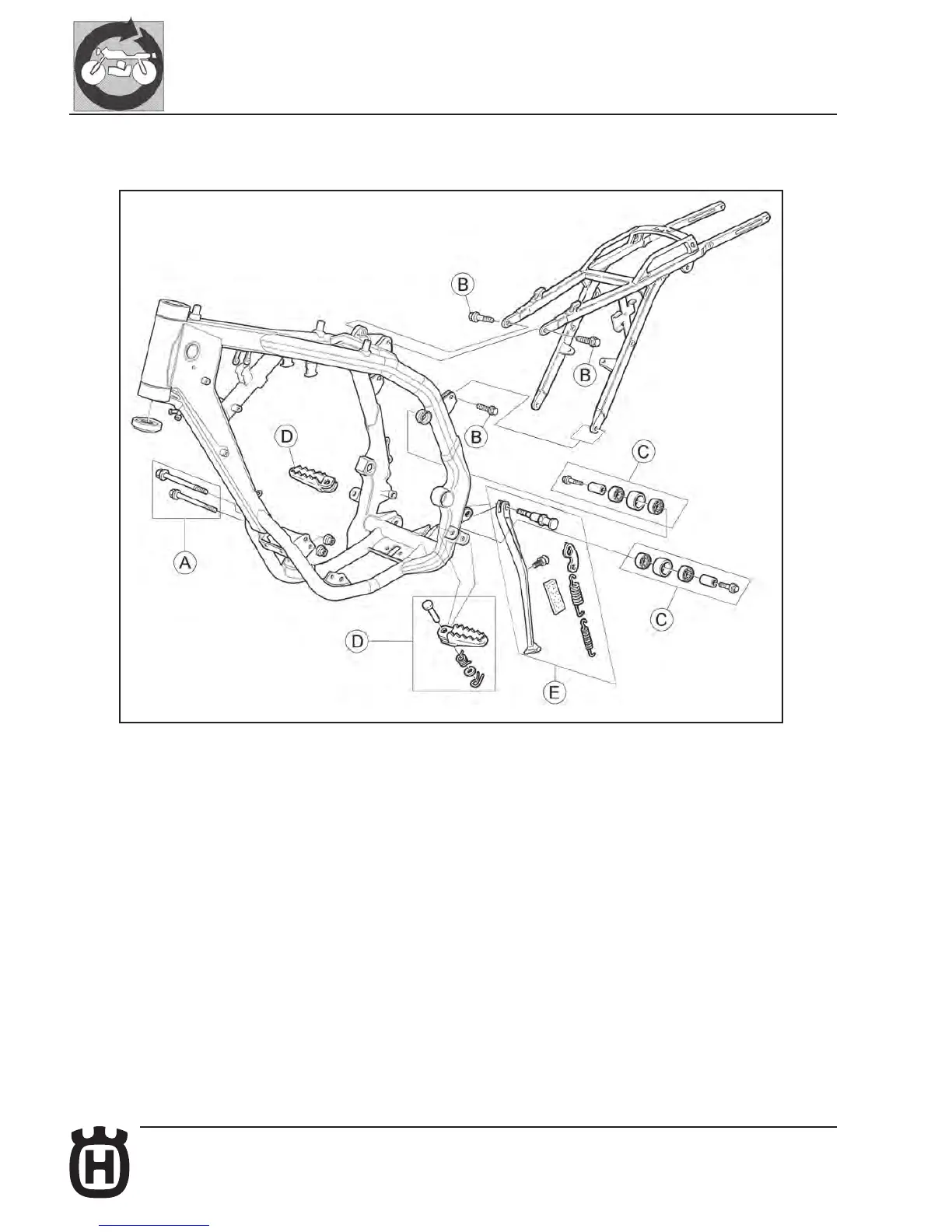

Check the assemblies shown on the picture for wear or failure.
If worn or breaked, replace them.
A. ENGINE FASTENING BOLTS
B. REAR FRAME FASTENING BOLTS
C. CHAIN GUIDE ROLLER-BEARING
D. FOOTRESTS-PIVOTS-SPRINGS
E. SIDE STAND- SPRINGS
