Y.14 Part. N. 8000 H1344 (10-2009)
FRAME AND WHEELS

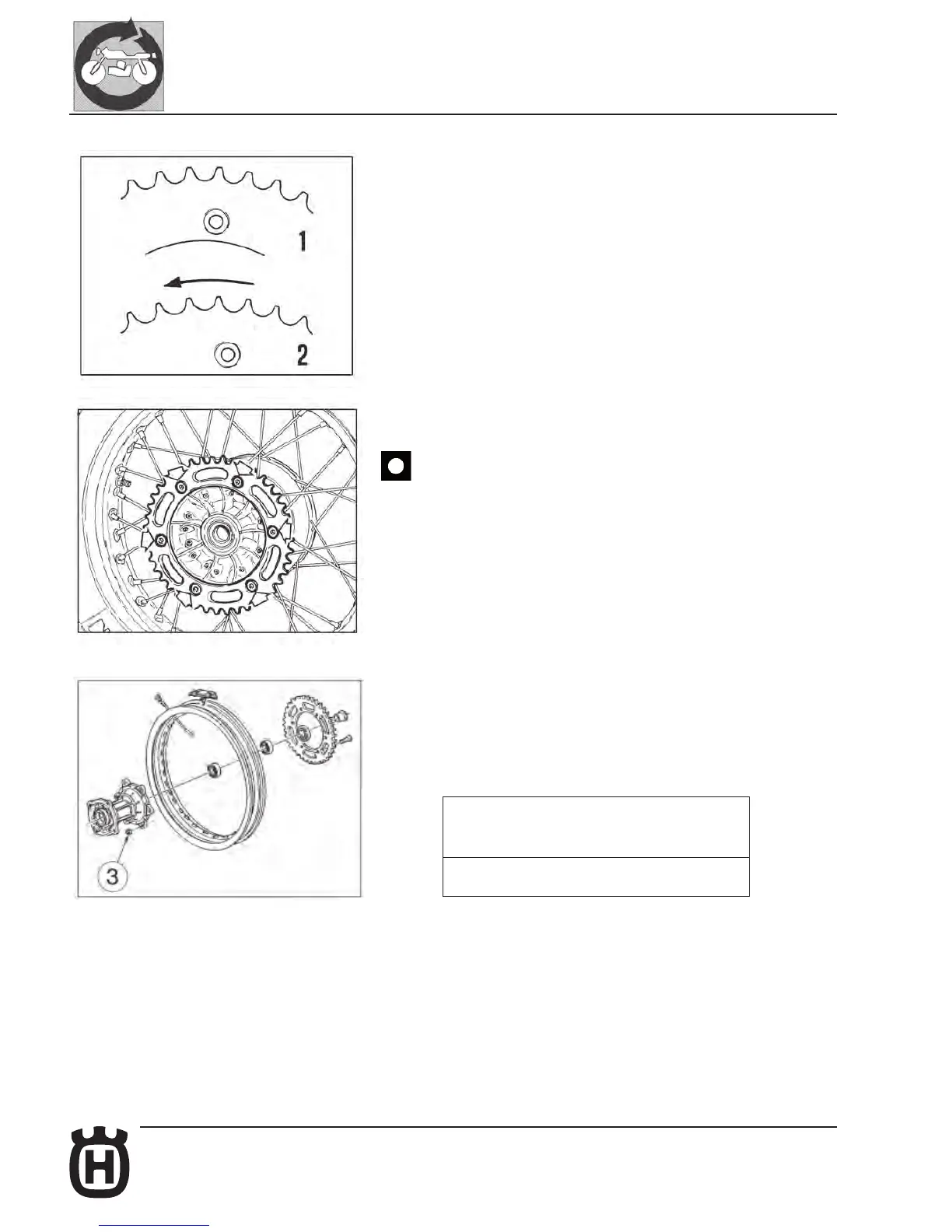

Rear sprocket, transmission sprocket and drive chain
The gure shows the outline of teeth in normal and excessive wear.
Should the sprocket be badly worn out, replace it by loosening the six fastening
screws to the hub.
After every rear sprocket replacement, also replace the drive sprocket
and transmission chain.
1- Normal consumption
2- Excessive consumption
TIGHTENING TORQUES
3: 34.3 Nm/ 3.5 Kgm/ 25.3 ft-lb +LOCTITE 243
