E.19Part. N. 8000 H1344 (10-2009)
GENERAL OPERATIONS

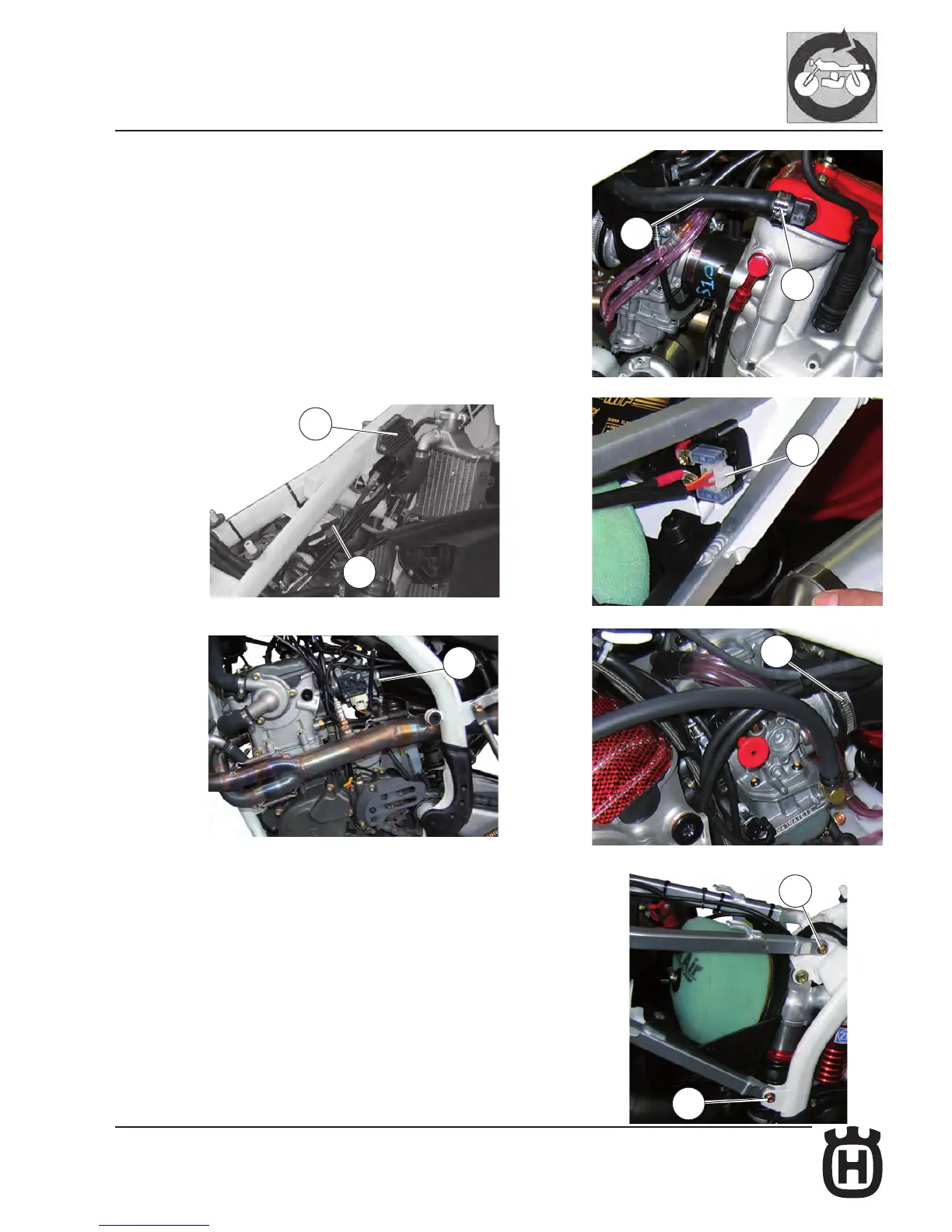

On the right side, remove the clamp (B) from the vent pipe from the lter box;
remove the pipe (C) from the cylinder head cover.
Disconnect the start remote control switch (7) and the connector of the rear light
from the cabling system (TE-SMR).
Without disconnecting them from the cabling system, remove the voltage regula-
tor (9), the electronic CDI central unit (8) with the elastic support of the frame.
Loosen the clamp (10) that holds the rubber tting from the lter box on the
carburettor or on the throttle body.
9
8
B
C
7
10
10
Use a 12 mm box wrench to remove the upper (11) and lower (12) fasteners
from the rear frame.
Pull the rear frame back, along with the mudguard and the air lter box, and
remove it from the main frame.
11
12
