3. Wiring
3.2 Pulse Train Control Mode
3-39
ME0342-4B

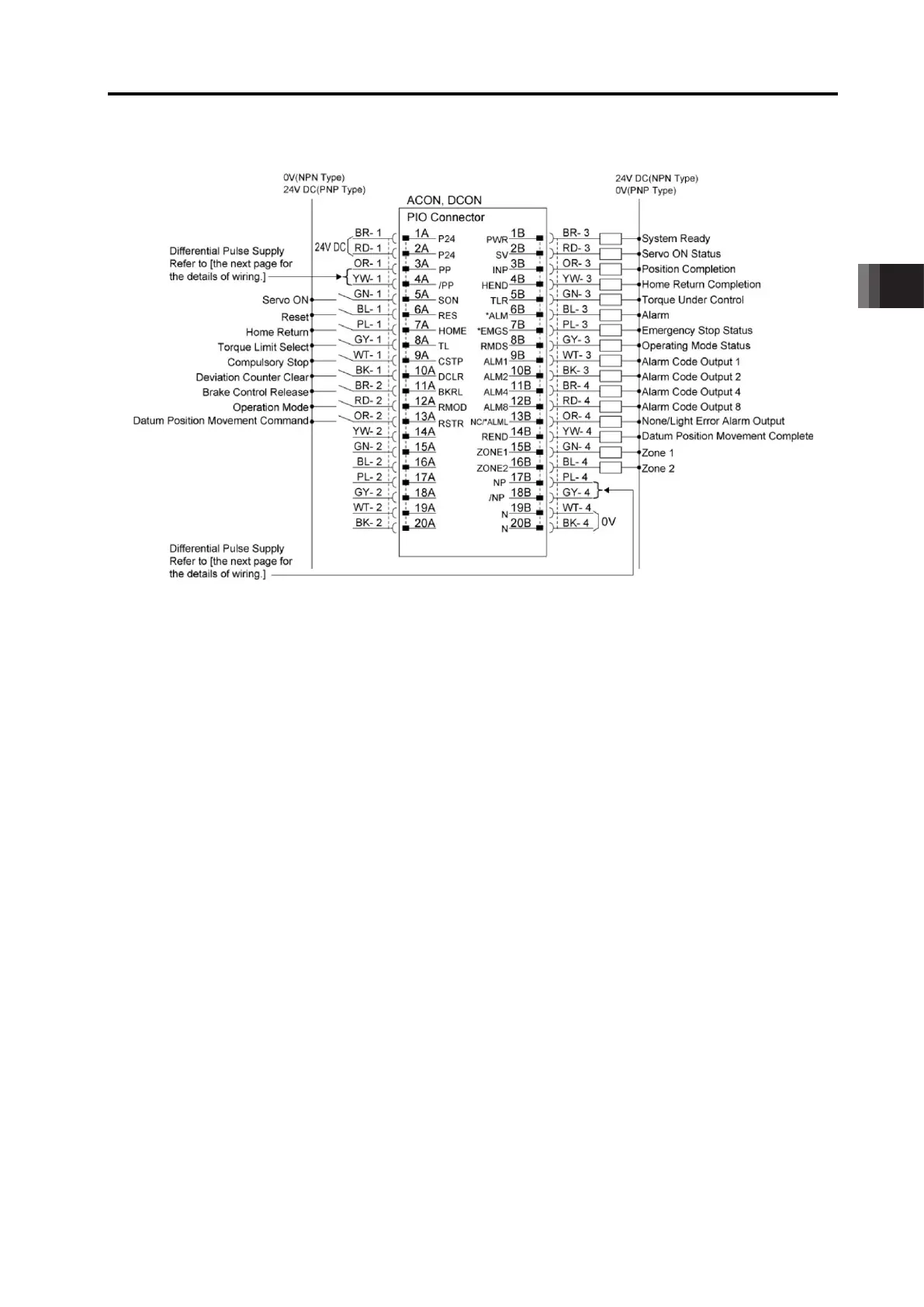

1) PIO Pattern 6 Pulse Train Control Mode (Incremental Type for Actuator)
* in codes above shows the signal of the active low. Processing occurs when an
input signal of the type is turned OFF. An output signal of the type is normally ON
in the power-on status and turned OFF at signal output.
3.2 Pulse Train Control Mode
ME0342-4B 3-40
2) PIO Pattern 7 Pulse Train Control Mode (Absolute Type for Actuator)
* in codes above shows the signal of the active low. Processing occurs when an
input signal of the type is turned OFF. An output signal of the type is normally ON
in the power-on status and turned OFF at signal output.
