3. Wiring
3.2 Pulse Train Control Mode
3-41 ME0342-4B

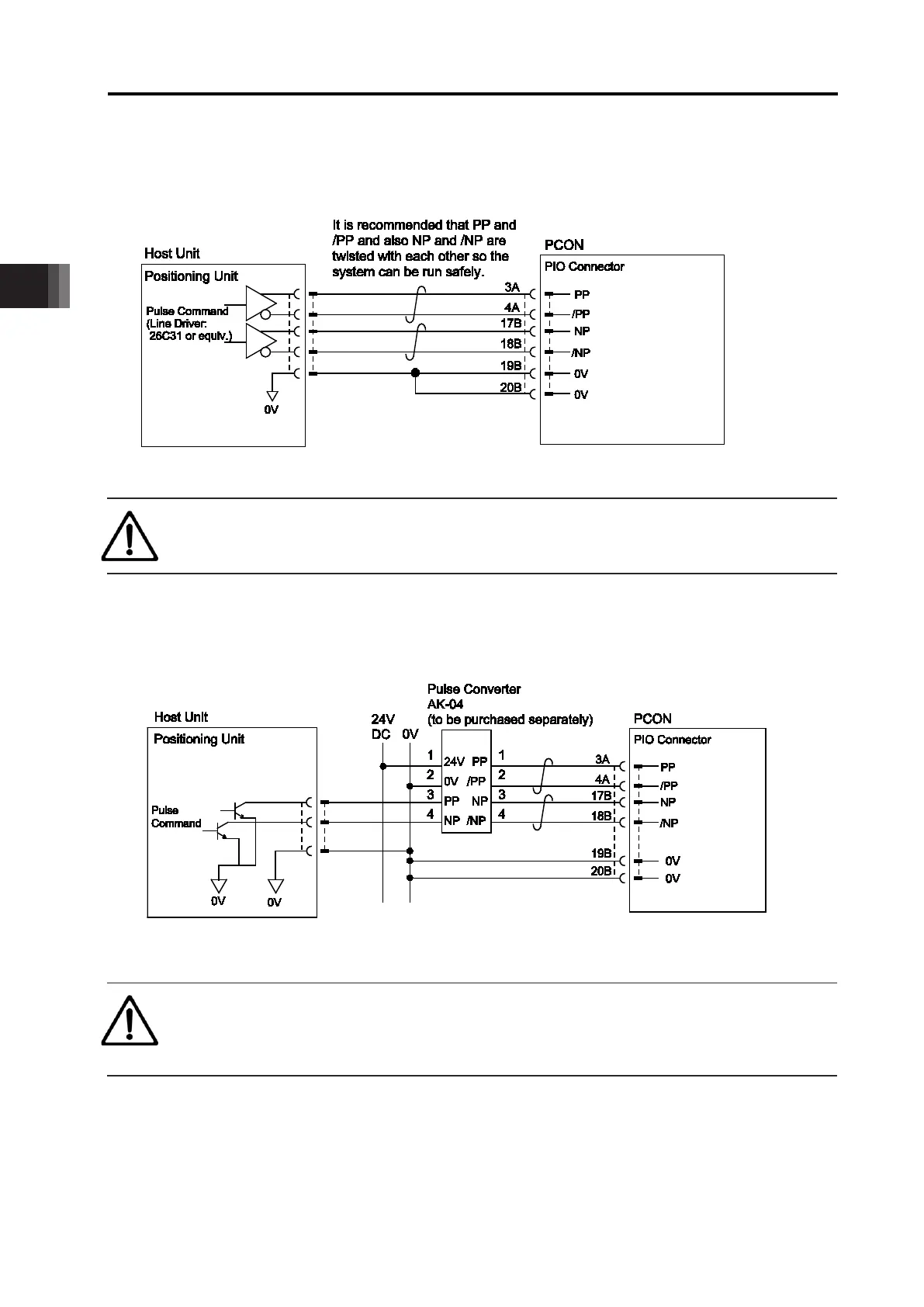

[4] Circuits for Pulse Train Control
● When Host Unit is Differential System
Caution
Make short-circuit between the host (positioning unit) and the 0V on PIO Connector.
● When Host Unit is Open Collector System
AK-04 (to be purchased separately) is required for pulse train input.
Caution
● Use the same power source for the host open collector input and output, AK-04.
● Have the cables as short as possible between the host unit and AK-04.
To Next Page
