4. Operation
4.2 Operation in Positioner Mode
4-30 ME0342-4B

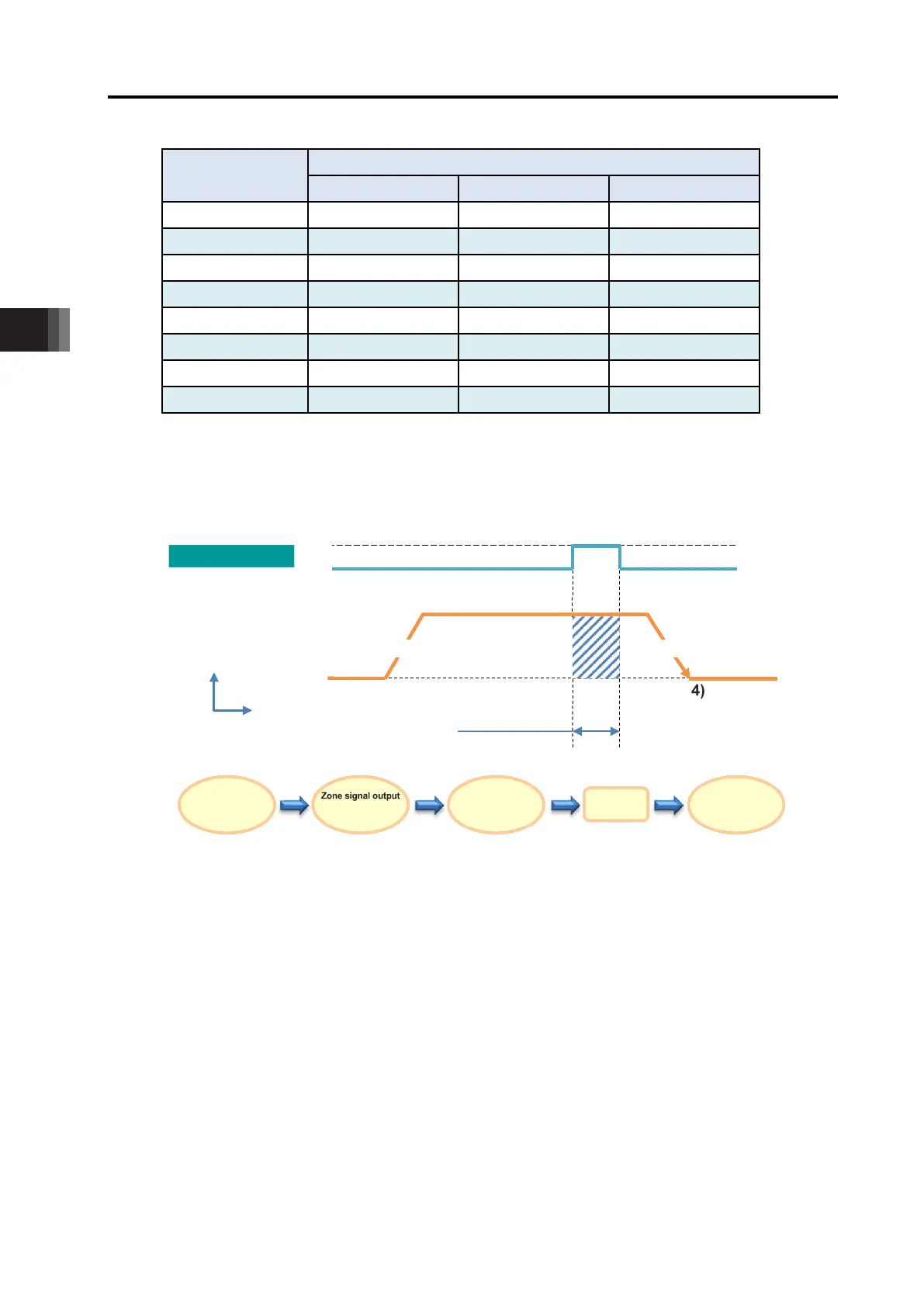

[5] Zone Signal and Position Zone Signal (ZONE1, ZONE2, PZONE)
PIO signal
Output
ZONE1
ZONE2
(Note 2)
PZONE
(Note 2)
Pattern 0
Pattern 1
(Note 2)
×
Pattern 2
(Note 2)
×
Pattern 3
(Note 1)
×
×
×
Pattern 4
Pattern 5
Pattern 6
Pattern 7
: Available, ×: Unavailable
Note 1 Pattern 3 does not have the zone signal output feature.
Note 2 In Parameter No.149 Zone Output Switchover, ZONE can be selected instead
of PZONE.
The relevant signal can be turned ON while the actuator passes or stops in the zone range in
either of the following 2 types:
1) Zone signal (ZONE1, ZONE2) : The output signal is turned ON at the position set by the
proper parameter.
2) Position zone signal (PZONE) : The output signal is turned ON at the position set in the
position table.
The feature can play a role as the sensor for judging whether the completion position is good or
not in pressing operation, setting the continuous operation zone in pitch feed or interlocking
operations of other units in the setting zone.
Zone signal output
setting zone
OFF
1)
Velocity
Position 1 input
Start signal input
(moving start)
Stop status
ON
Zone output signal
Acceleration
Deceleration
at entry into setup
zone
Position 1 input
Start signal input
(moving start)
Moving
comp.
Positioning
completion
signal output
2)
3)
4)
Time
5)
1)
2)
3)
4)
5)
