4. Operation
4.2 Operation in Positioner Mode
4-52 ME0342-4B
(1) For Standard (PIO Patterns 0 to 3)
■ Control method
Load Output Judgment Status (LOAD) Signal
(Note 1)
turns ON when the pressing current exceeds
the value [%] set as the “threshold” of the position data in the pressing operation range (except
for approach operation range) and in the range set as the “position zone” in the position data for
the duration of judgment time
(Note 2)
or longer. It will not turn OFF even if the load has been
removed and the current has dropped. It turns OFF at next movement command or alarm reset.
Torque Level Status (TRQS) Signal
(Note 1)
turns ON when the pressing current exceeds the
value [%] set as the “threshold” of the position data in the pressing operation range (except for
approach operation range) for the duration of judgment time
(Note 2)
or longer. It turns OFF once it
has been confirmed that the load has been removed and the current has dropped.

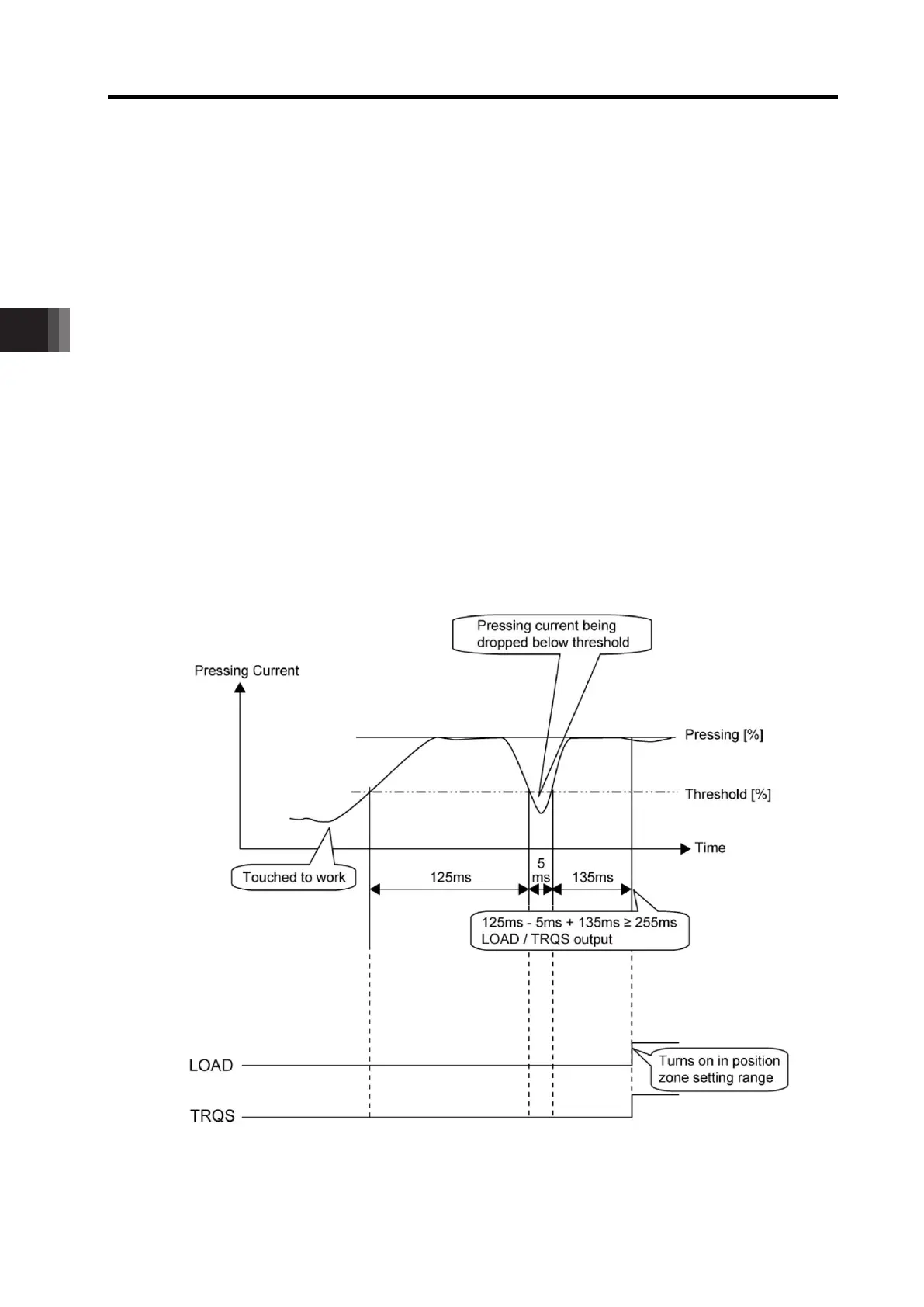

● Condition
(Total time of pressing current to reach above threshold)
– (Total time of pressing current to get below threshold) ≥ 255ms (Parameter No. 50)
Note 1 It should be switched to LOAD Signal with “0” set in Parameter No. 51
“Torque inspected range” and TRQS Signal with “1” set in the parameter.
Note 2 Establish the setting in Parameter No.50 “Load Output Judgment Time.”
(Initial setting: 255ms)
To Next Page
