4. Operation
4.2 Operation in Positioner Mode
4-78 ME0342-4B
[4] Tension Operation

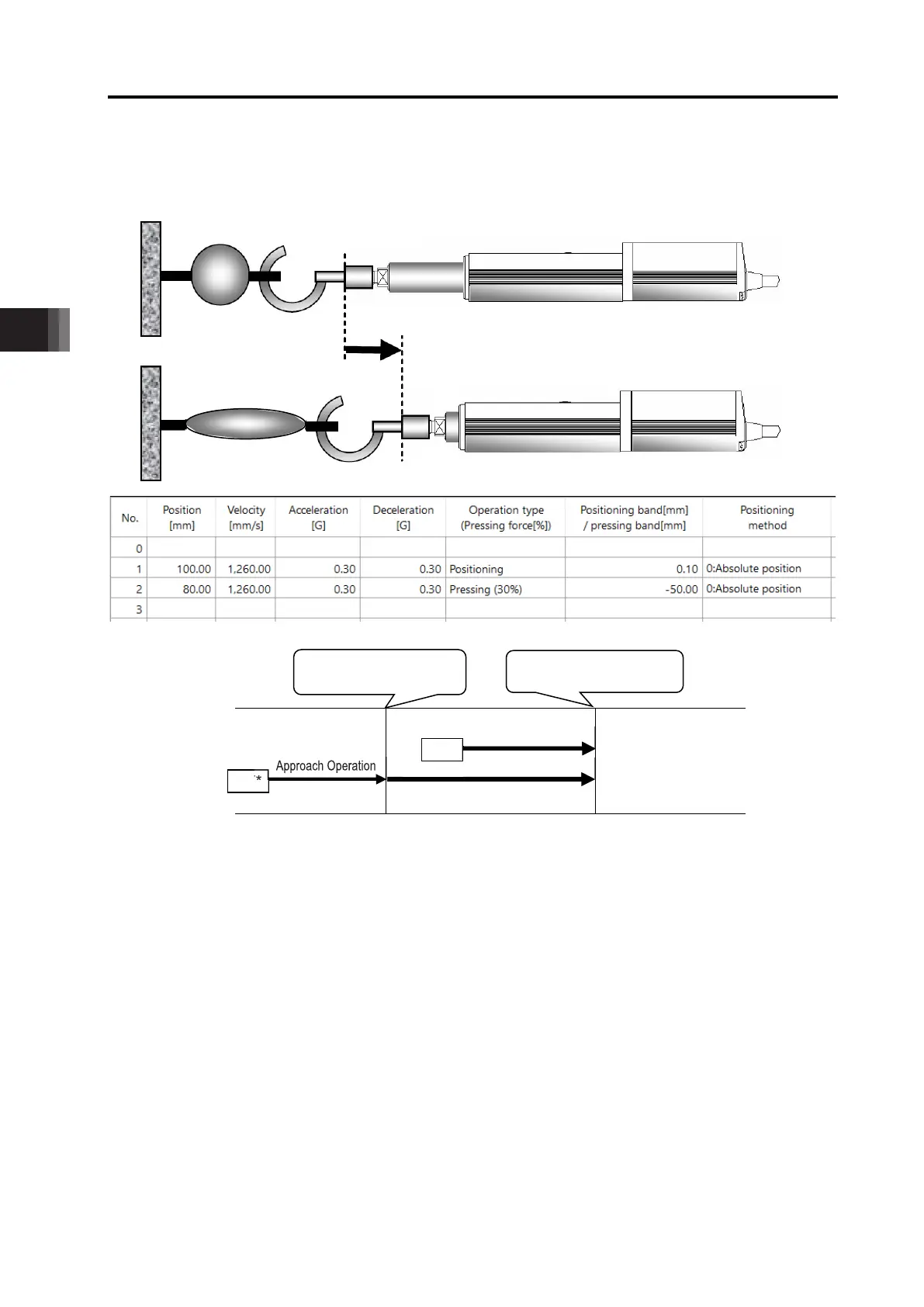

■ Image diagram
■ Control method
The method of controlling the tension operation is the same as that described in [3] Pressing
operation. The control method is explained below by using the sample position table shown
above.
1) Position No.2 indicates the settings of tension operation. The settings of “Position” and
“Positioning width” show the tension start position and the tension quantity, respectively.
Attach – (negative sign) to the tension quantity. Specify the upper limit of the torque required
for tension in percent [%] (limited current value) in “Pressing”. The speed, acceleration, and
deceleration are the conditions of positioning to the coordinate value (80mm) set in
“Position”.
2) Position No.1 indicates the tension start preparation position. Specify a value larger than the
coordinate value at which the tension provided by position No.2 ends (80 – 50 = 30mm) in
“Position”.
No.1
Tension start position
80mm
Tension end position
80 – 50 = 30mm
To Next Page
