4. Operation
4.2 Operation in Positioner Mode
4-92 ME0342-4B

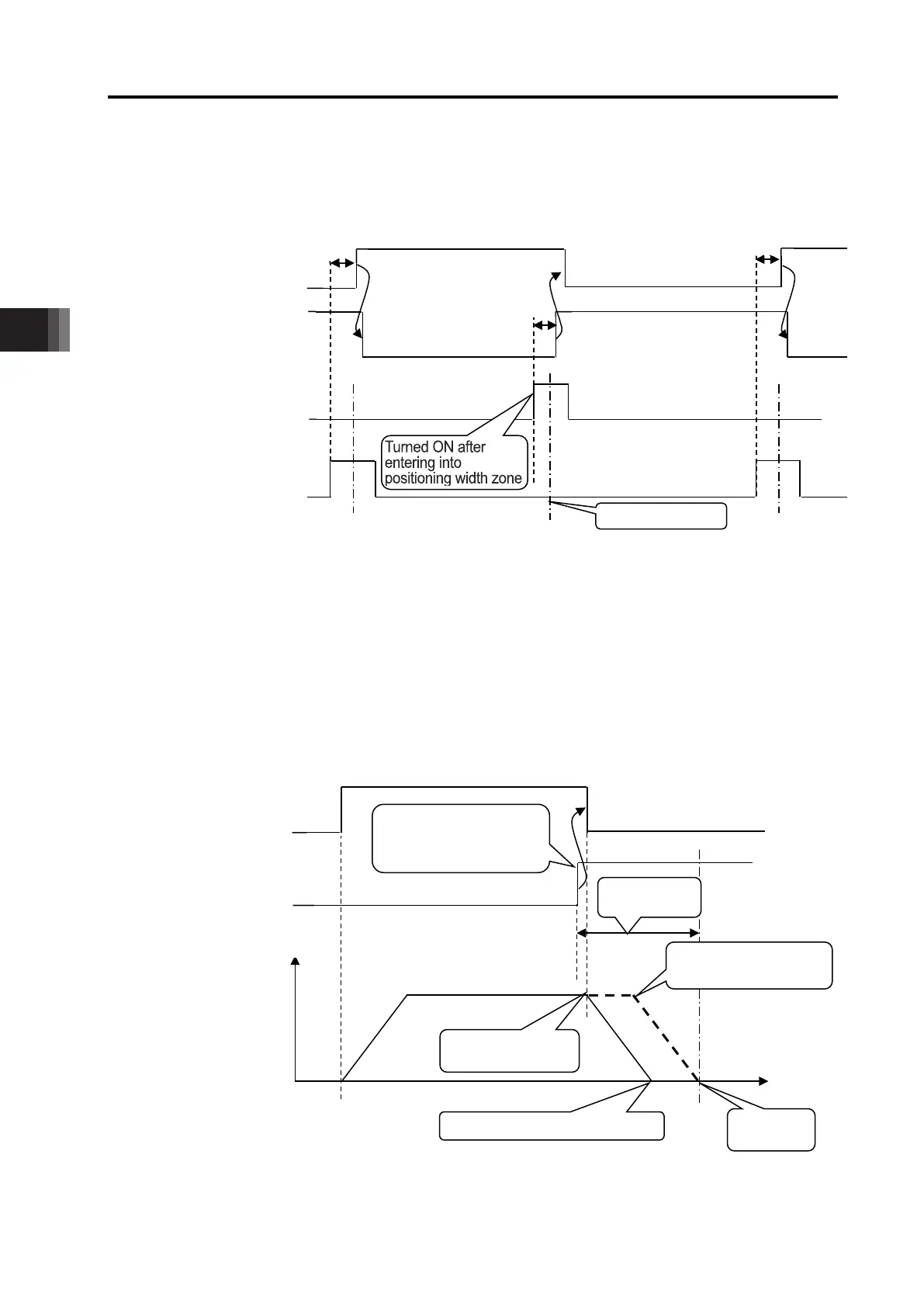

(Example) Repetition of ST1 ST2 ST1 • • •
Insert timer Δt if necessary.
Δt : Time required to certainly reach the target position after the position sensing output LS1 or 2 is turned on.
[Example of stop position when the ST* signal is turned OFF by the LS* signal]
If the positioning width is set at a position before the original deceleration start position,
the actuator cannot reach the target position.
Start signal
ST1
(PLCController)
Target Position
Position sensing output
LS1
(ControllerPLC)
Start signal
ST2
(PLCController)
Position sensing output
LS2
(ControllerPLC)
Δt
Δt
Δt
Start signal
ST1
(PLCController)
Turned ON after
entering into
positioning width zone
Target
Position
Position sensing output
LS1
(Controller
PLC)
Operation of actuator
Stop before target position
Orignal deceleration
start position
Positioning
width
Deceleration
start
Velocity
Move
distance
