9. Appendix
9.3 Example of Basic Positioning Sequence (PIO pattern 0 to 3)
9-30 ME0342-4B
[12] Commanded Position No. Output Circuit
Depending on the result of the ready circuit, this circuit converts position No. to the binary code
and outputs the data from PLC to PCON.
[13] Start Signal Output Circuit
After 20ms from the output of position No., this circuit outputs the start signal from PLC to
PCON.
9.3 Example of Basic Positioning Sequence (PIO pattern 0 to 3)
ME0342-4B 9-31

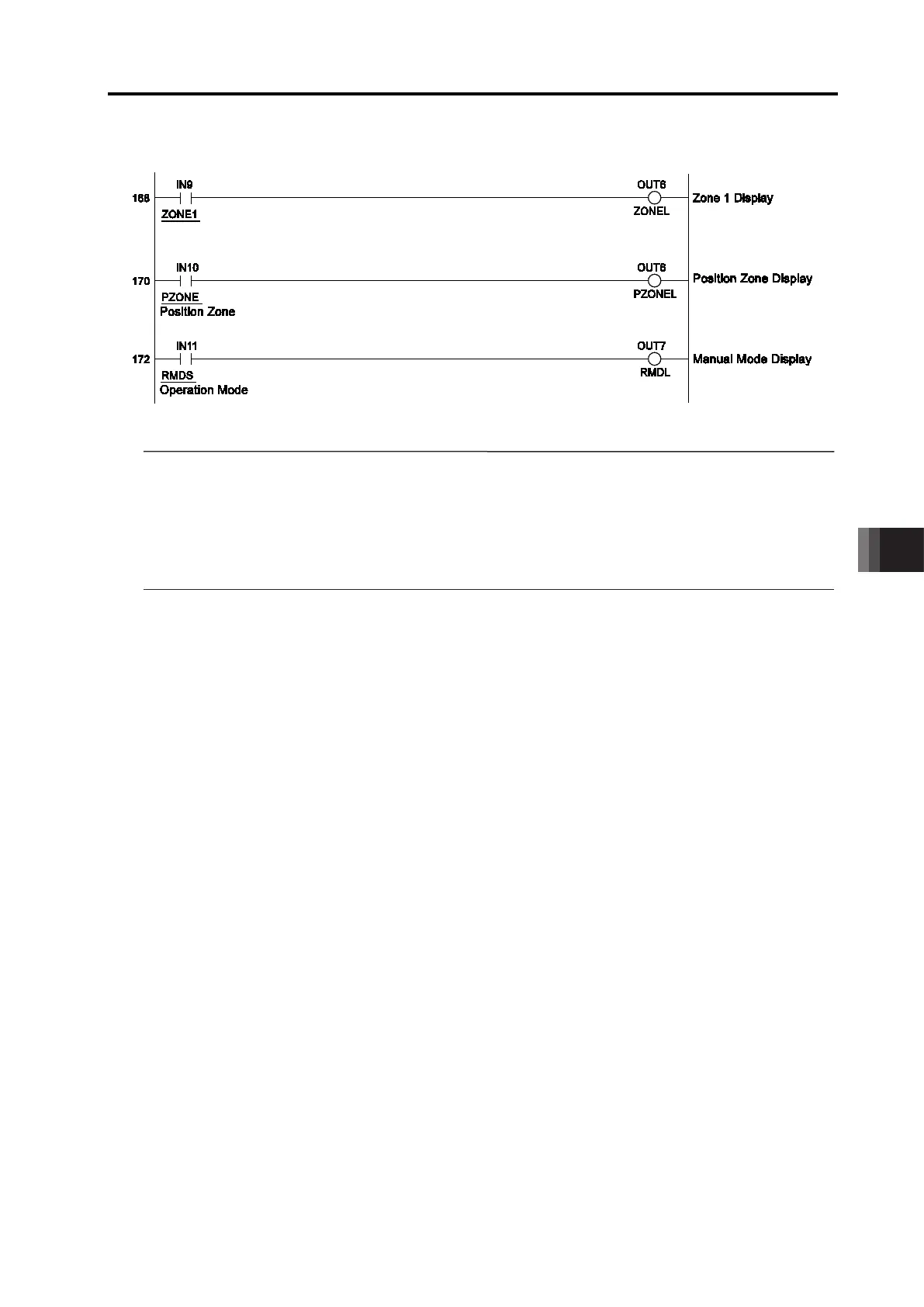

[14] Other Display Circuits (Zone 1, Position Zone, and Manual Mode)
Reference
Programs and functions of PLC are expressed differently depending on manufacturers.
However, the contents of sequence designs do not vary fundamentally.
Though arithmetic and data processing commands seem differently, any manufacturer
defines command words executing the same functions as those of other manufacturers.
