9. Appendix
9.3 Example of Basic Positioning Sequence (PIO pattern 0 to 3)
9-30 ME0342-4B

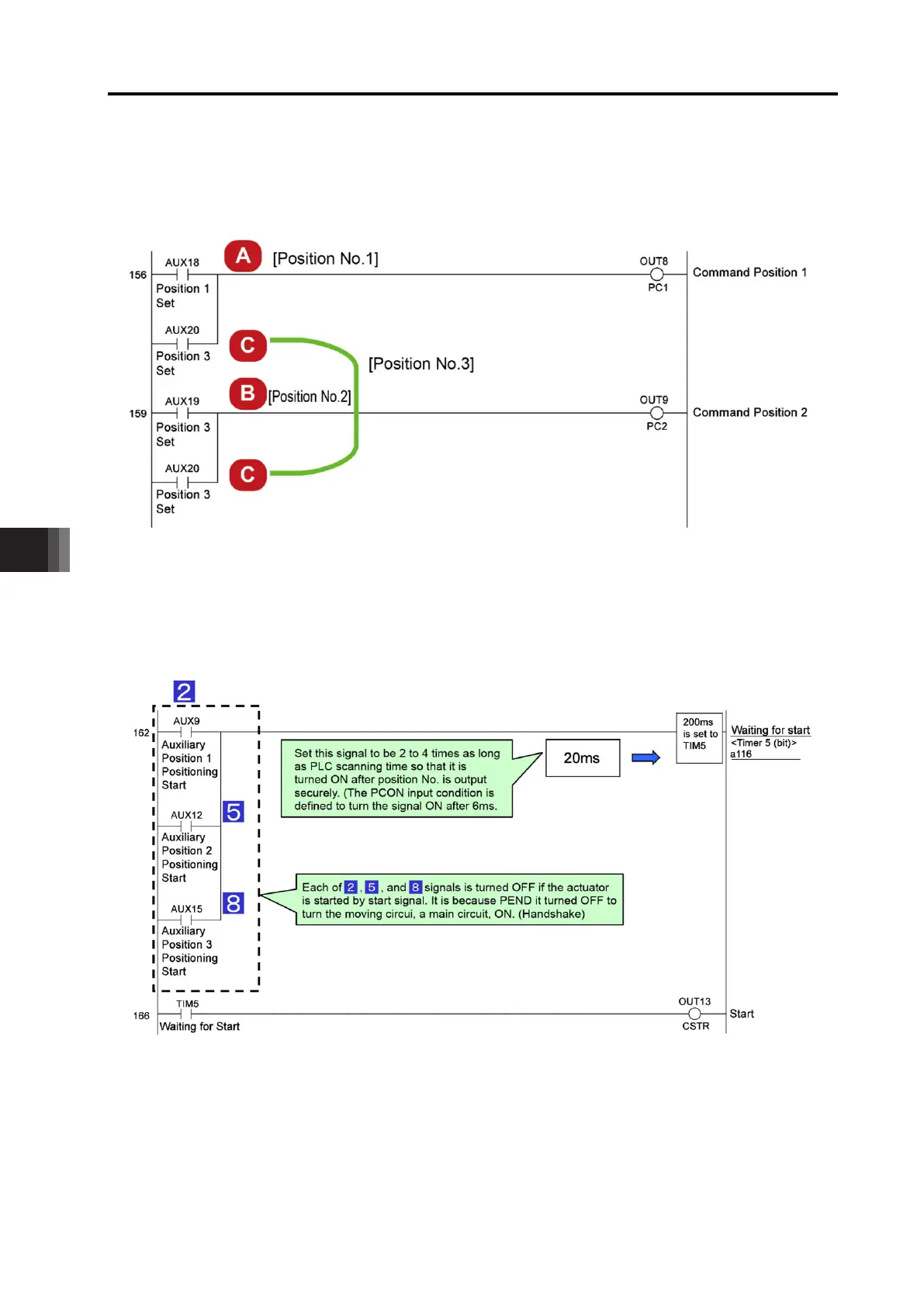

[12] Commanded Position No. Output Circuit
Depending on the result of the ready circuit, this circuit converts position No. to the binary code
and outputs the data from PLC to PCON.
[13] Start Signal Output Circuit
After 20ms from the output of position No., this circuit outputs the start signal from PLC to
PCON.
