Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
89
3.4 LSI IMR RAID5 Key – Installation / Removal (S2600CW Server Board Family
Only)
3.4.1 Installing the LSI IMR RAID 5 Key

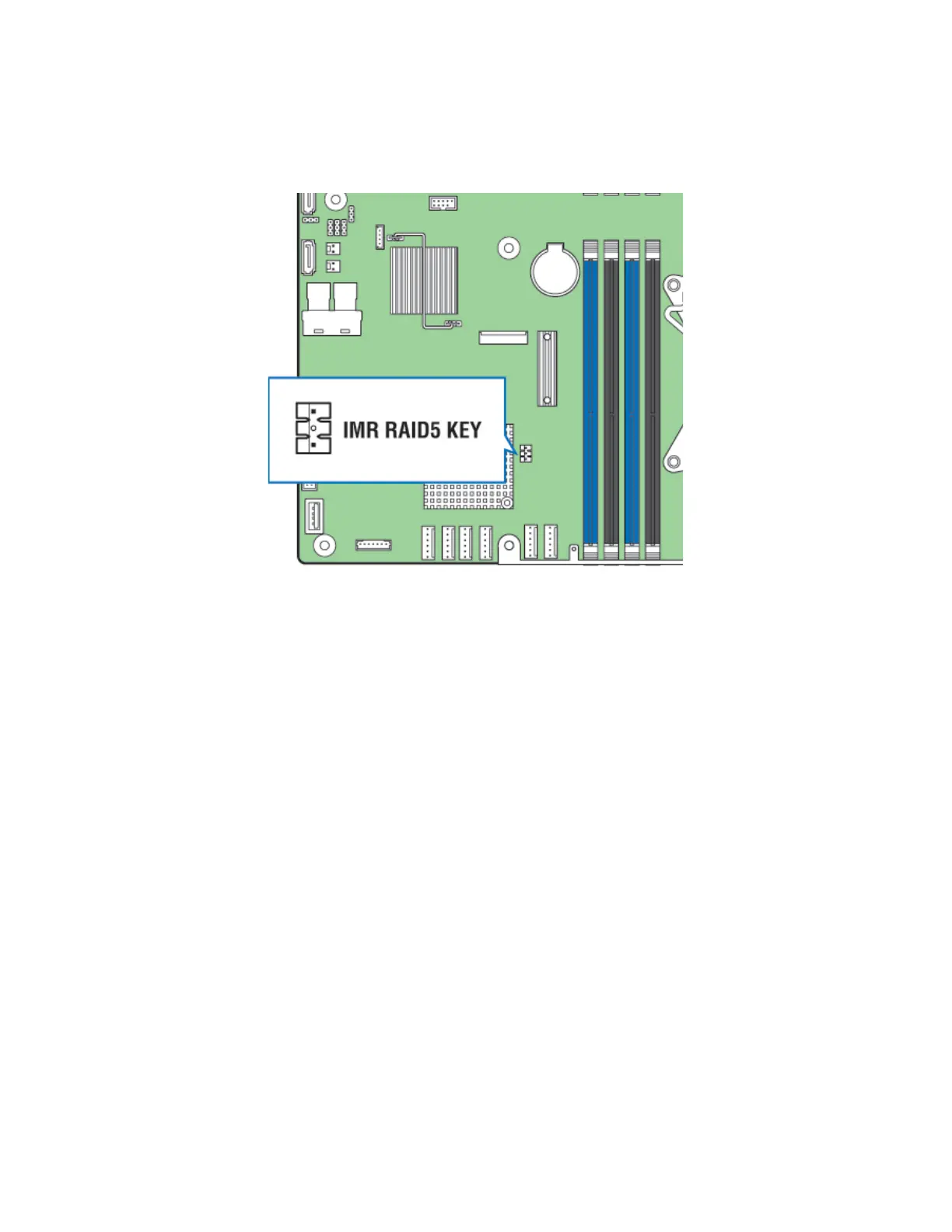

Figure 115. IMR RAID 5 Key Location
1. Remove the LSI IMR RAID 5 Key from its packaging.
2. Locate the key connector shown in Figure 108.
3. To install the key, place it over the connector and confirm the orientation of the key matches that
of the connector.
4. Press the key down onto the connector.
3.4.2 Removing the LSI IMR RAID 5 Key
1. Power off the system and disconnect the power cable(s).
2. Remove the chassis side cover.
3. Using the key pull tab, pull the key up until it disengages from the connector.
