Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
69
2.3.8 Drive Carrier Extraction, Installation, and Assembly for Standard Carrieers
Note: To maintain proper system cooling, all externally accessible drive bays must be populated with a drive
carrier. Each drive carrier must have a hard disk drive (HDD), Solid State Device (SSD), or a supplied drive
blank installed.
2.3.8.1 Drive Carrier Extraction

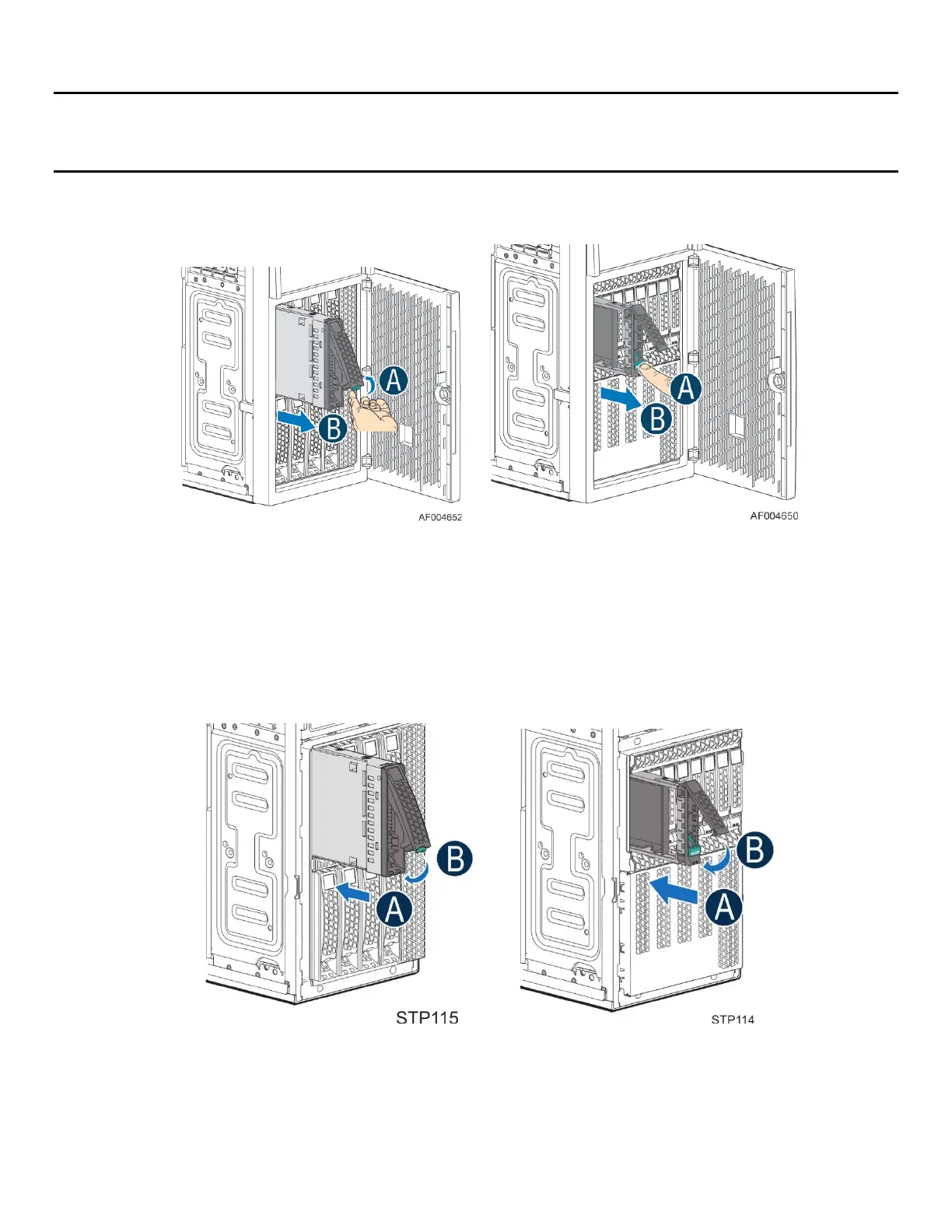

Figure 81. Installing Hot-Swap Storage Devices – Carrier Extraction
1. Remove the drive carrier from the chassis by pressing the green button and pulling open the lever
(see letter A).
2. Pull the carrier out of the drive bay (see letter B).
2.3.8.2 3.5” Drive Carrier Insertion
Figure 82. Hard Disk Drive Installation – Drive Carrier Insertion
1. With the lever open, insert the drive assembly into the drive bay (see letter A).
2. Push in the lever to lock it into place (see letter B).
