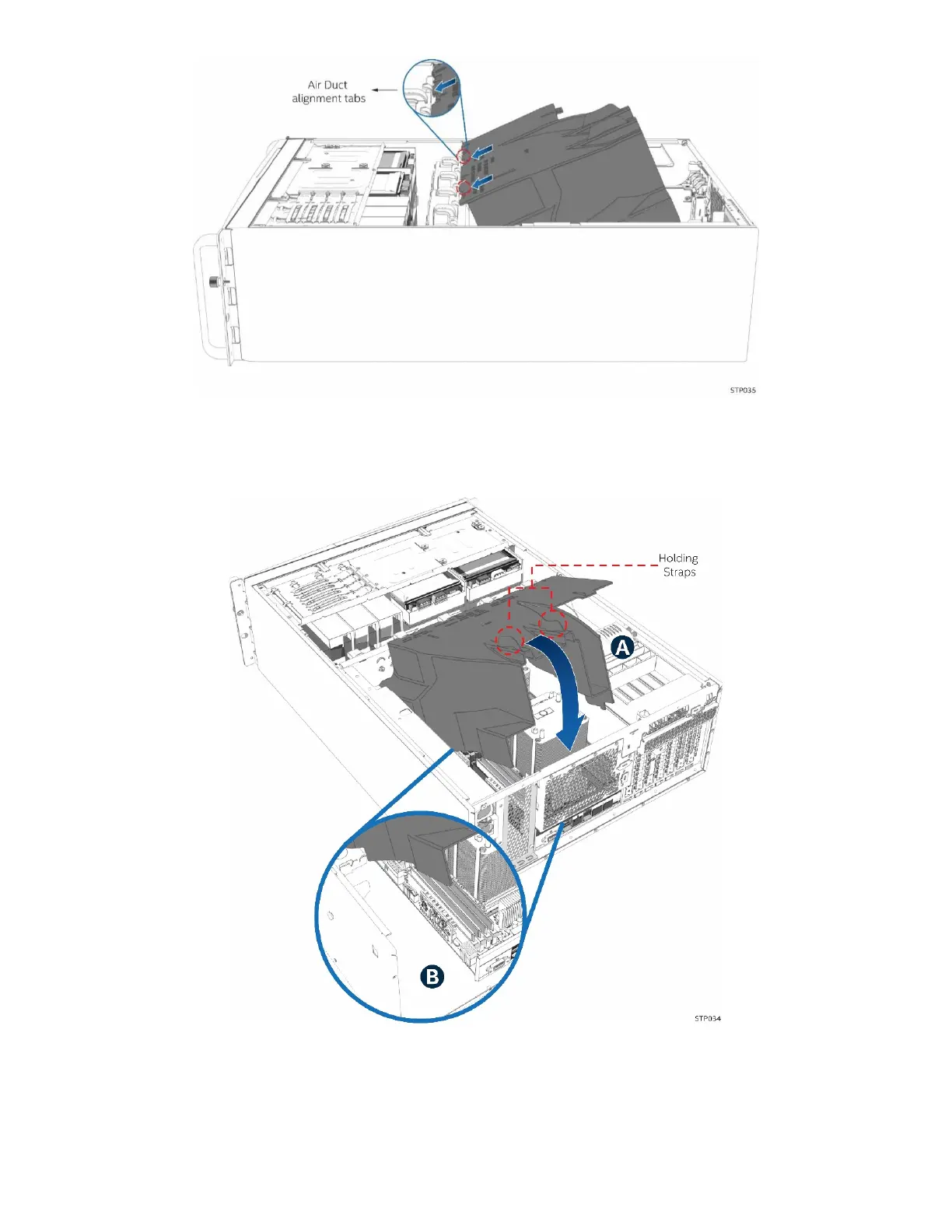

Figure 7. Installing the Air Duct 2/4
3. Lower the air duct into the chassis in a tilted manner so that the two tabs in the front are securely
installed in the chassis alignment holes first.
Figure 8. Installing the Air Duct 3/4
4. Hold the back of the air duct by the holding straps as shown in the illustration (see letter A).
5. Carefully lower the back of the air duct, avoiding contact with the server board components (see
letter B), and ensuring the power cables fit under the notch.
