Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
17
1.3.3 Connecting Cables From Front Panel to Server Board
1.3.3.1 S2600CW Server Board Family

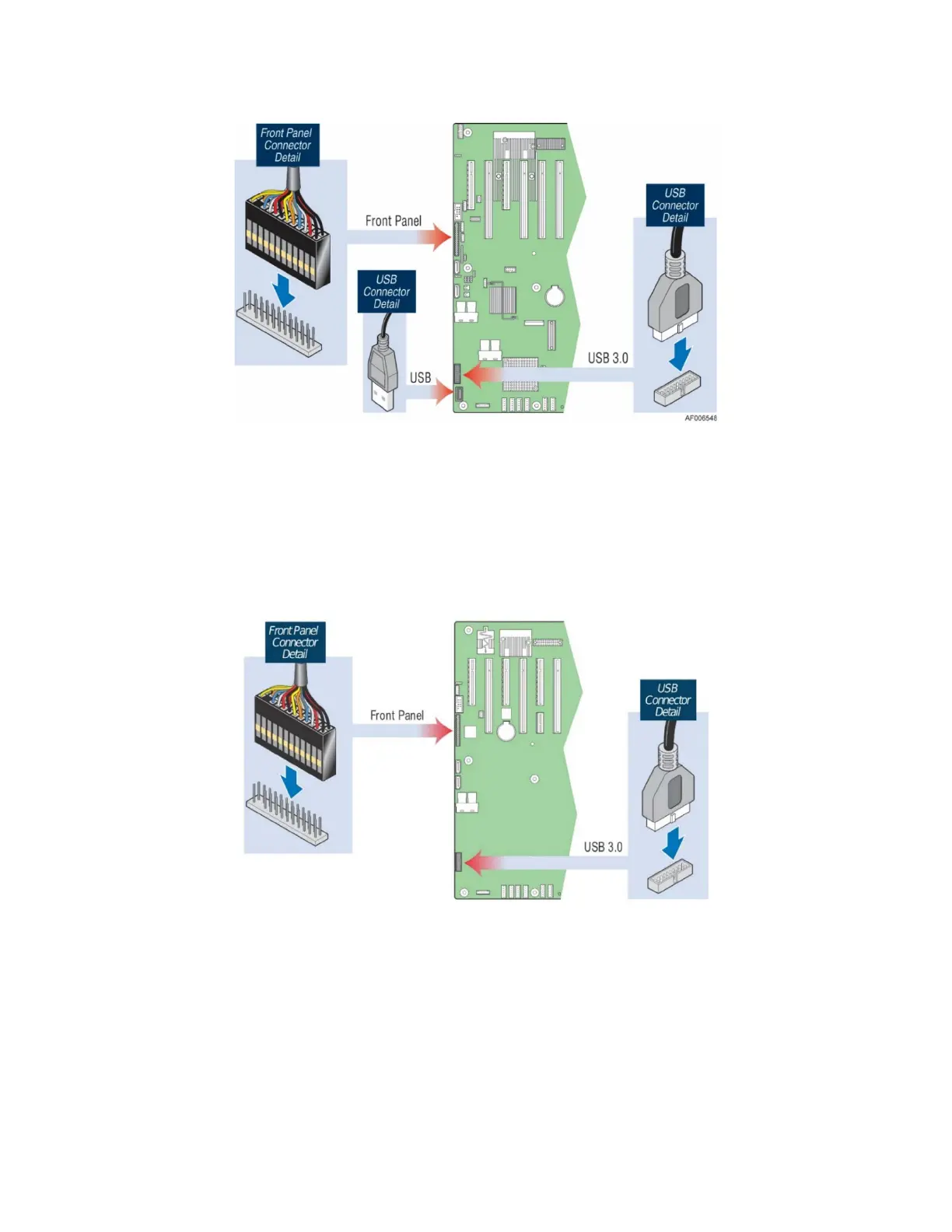

Figure 19. Connecting Front Panel Cables - S2600CW Board Family
1. Connect the gray 24-pin front panel cable to the 2x12 SSI -compliant front panel header on the
server board edge (silkscreen labeled “SSI_FRONT_PANEL”).
2. Connect the black USB 3.0 cable to the 2x10 USB 3.0 header in blue close to the corner of the
server board (silkscreen labeled “USB_5-6”).
1.3.3.2 S2600ST Server Board Family
Figure 20. Connecting Front Panel - S2600ST Board Family
1. Connect the gray 24-pin front panel cable to the 2x12 SSI- compliant front panel header on the
server board edge (silkscreen labeled “SSI_FRONT_PANEL”).
2. Connect the USB 3.0 cable to the 2x10 USB 3.0 header in blue close to the corner of the server
board (silkscreen labeled FP_USB_6-7).
