Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
5
1.2.1.2 Chassis Side Cover Installation

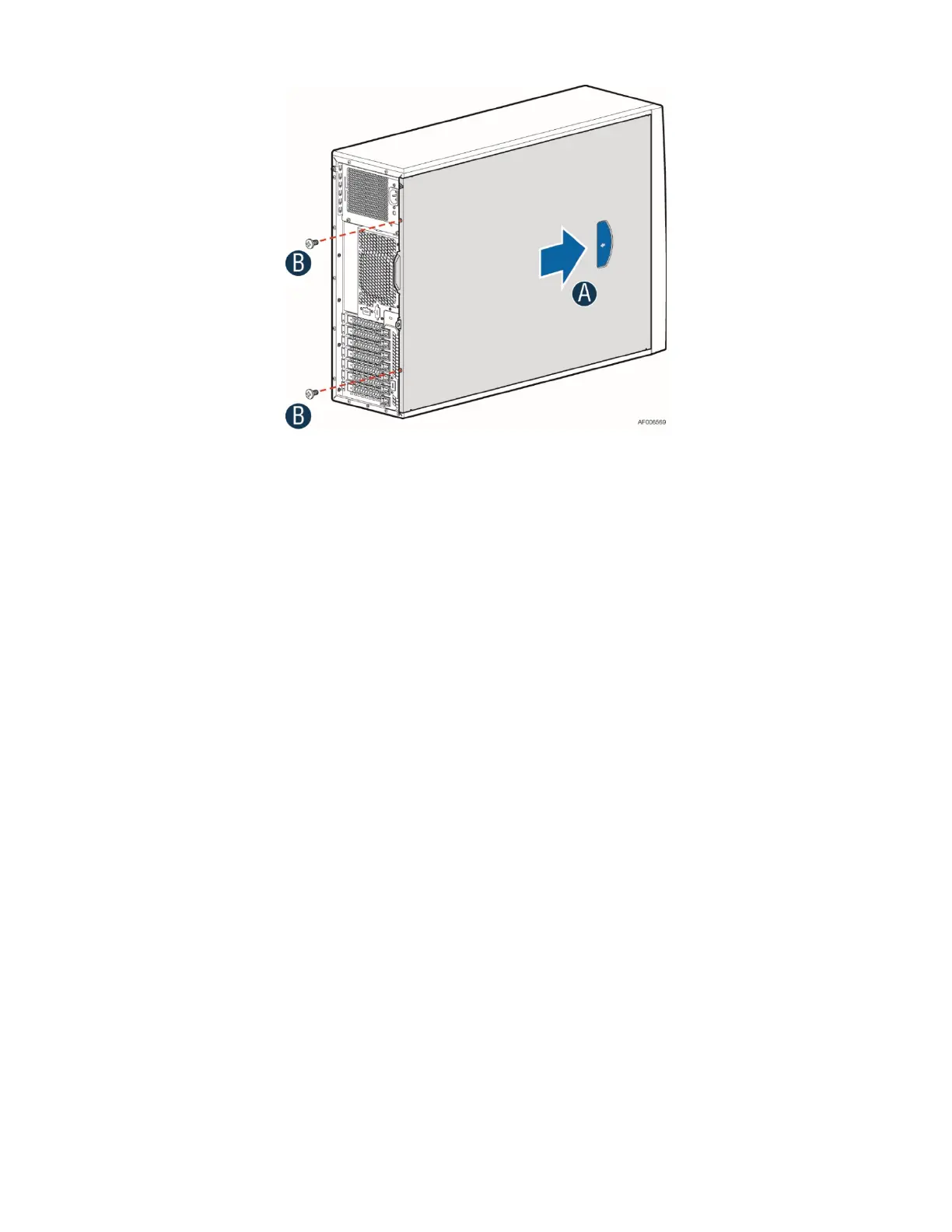

Figure 4. Installing the Chassis Side Cover
1. Place the chassis side cover onto the chassis and slide forward until the front edge of the cover is
pressed up against the back edge of the front drive bay (see letter A).
2. Secure the side cover with two screws (included with the chassis) at the back of the chassis (see
letter B).
