Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
78

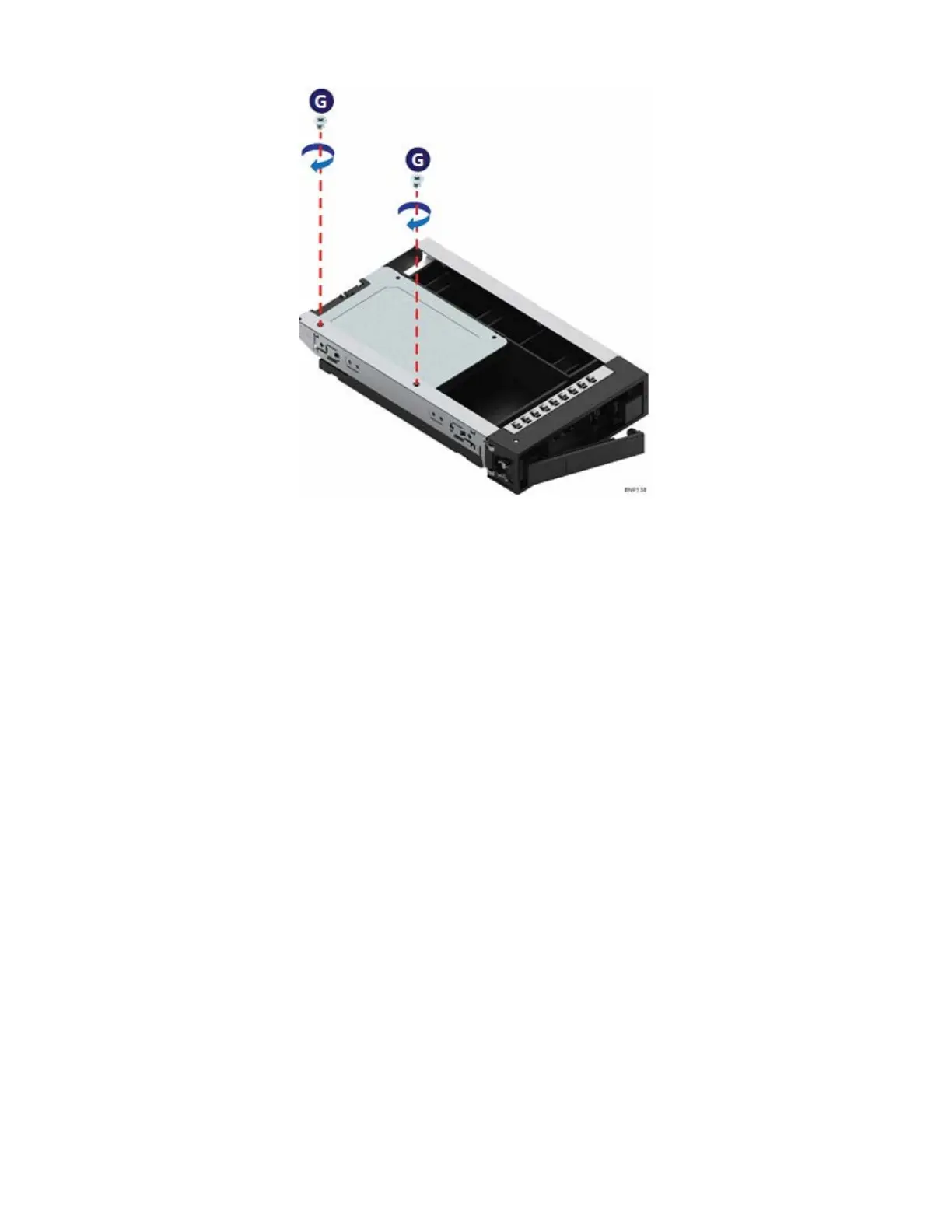

Figure 99. 3.5" Drive Carrier to 2.5” SSD Bracket – Secure SSD to Carrier
7. Using two (2) screws, secure the SSD to the carrier side rail (See letter “G”)
