7.3 Replacing the Standard Front Panel
7.3.1 Removing the Front Panel
1. Remove the chassis side cover following instructions in Section 1.2.1.
2. Remove the front bezel following instructions in Section 2.3.1.

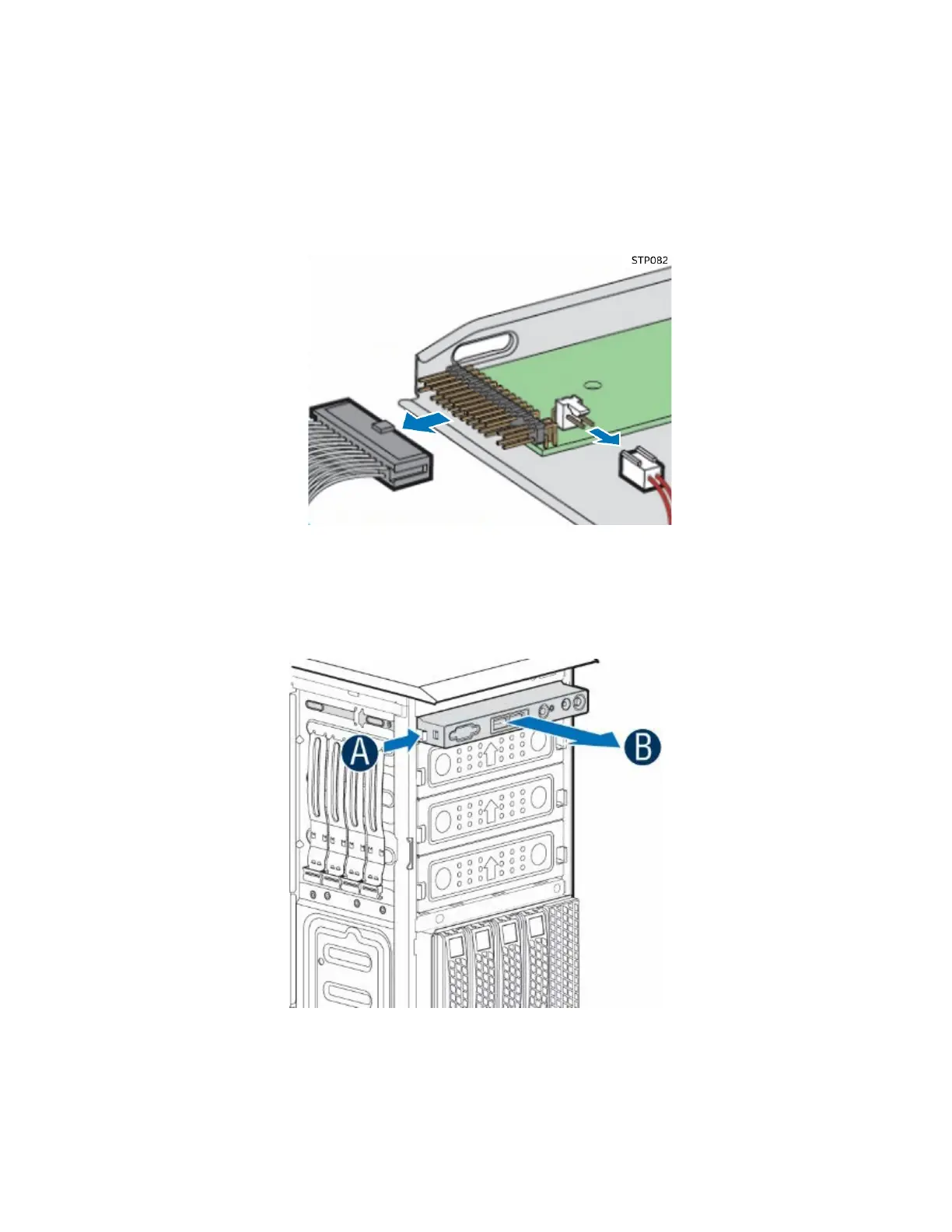

Figure 148. Disconnecting the Front Panel Module
3. Reach behind the front panel module and disconnect the flat ribbon front panel cable and the
intrusion switch cable.
Figure 149. Removing the Front Panel Module
4. Press the clip (see letter A).
5. Pull the front panel module outside of the chassis (see letter B).
