Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
77

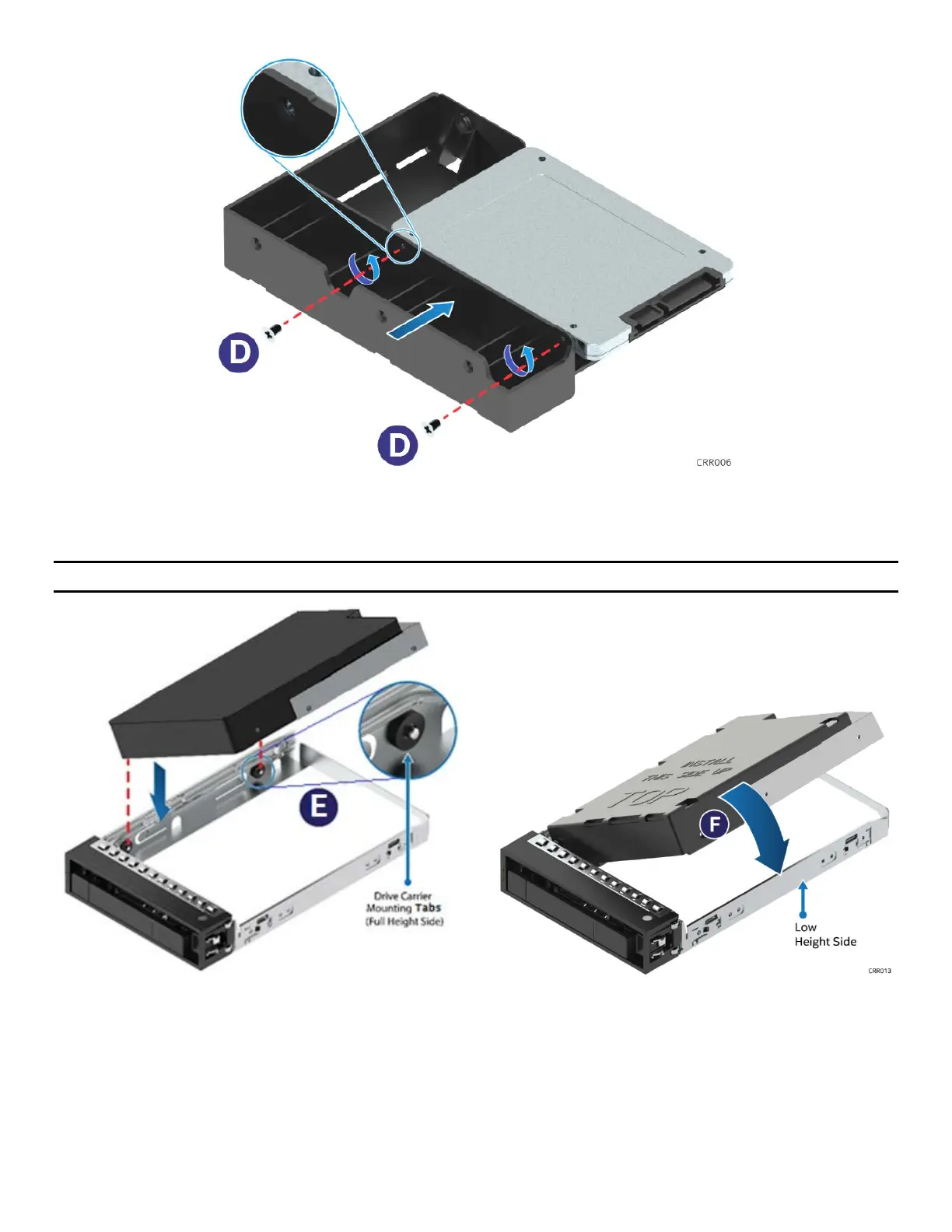

Figure 97. 3.5" Drive Carrier to 2.5” SSD Bracket – Mount SSD to Bracket
3. Mount and secure a 2.5” SSD to the drive bracket using two screws at the locations shown above (See
letter “D”).
Note – New drive carriers with drive blanks installed, will include a bag containing four (4) mounting screws.
Figure 98. 3.5" Drive Carrier to 2.5” SSD Bracket – Mount Bracket Assembly to Carrier
4. With the rear drive connector positioned towards the back of the drive carrier, align and position the
mounting holes on the left side of the drive bracket over the mounting tabs located on the drive carrier
side rail (See letter “E”)
5. Lower the other side of the drive into the carrier and press down until all mounting tabs lock in place.
(See letter ‘F’)
6. Turn the drive assembly over.
