Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
141

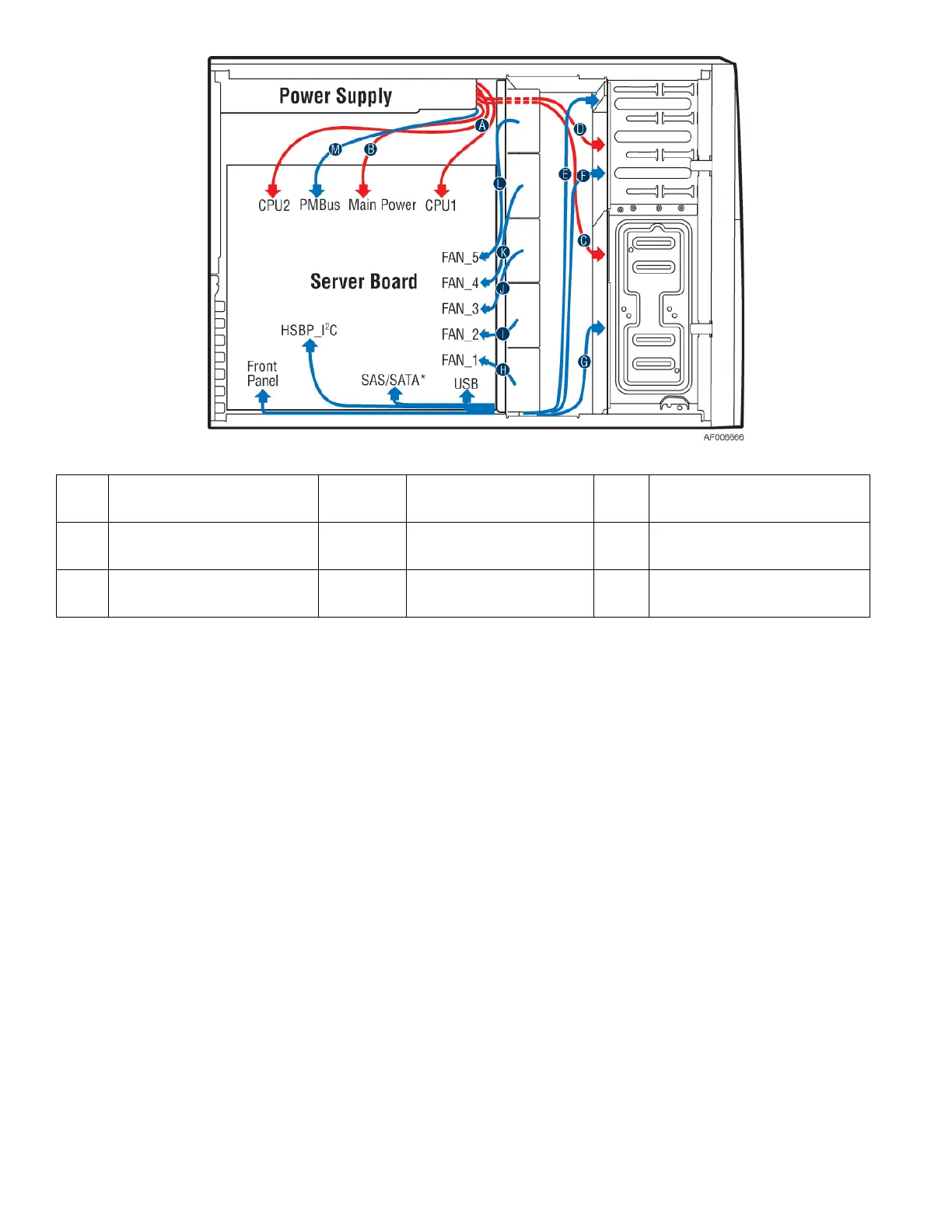

Figure 158. P4304XXMUXX Cable Routing - S2600CW Server Board Family
A CPU1/2 power cable B Main power cable C SSD/HDD drive bay power
cable (SAS/SATA)
D ODD drive bay power
cable
E Front panel and USB
cable
F ODD data cable
G SSD/HDD drive bay data
cable (SATA)
H, I, J,
K, L
FAN_n cables M PMBus cable
