Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
138

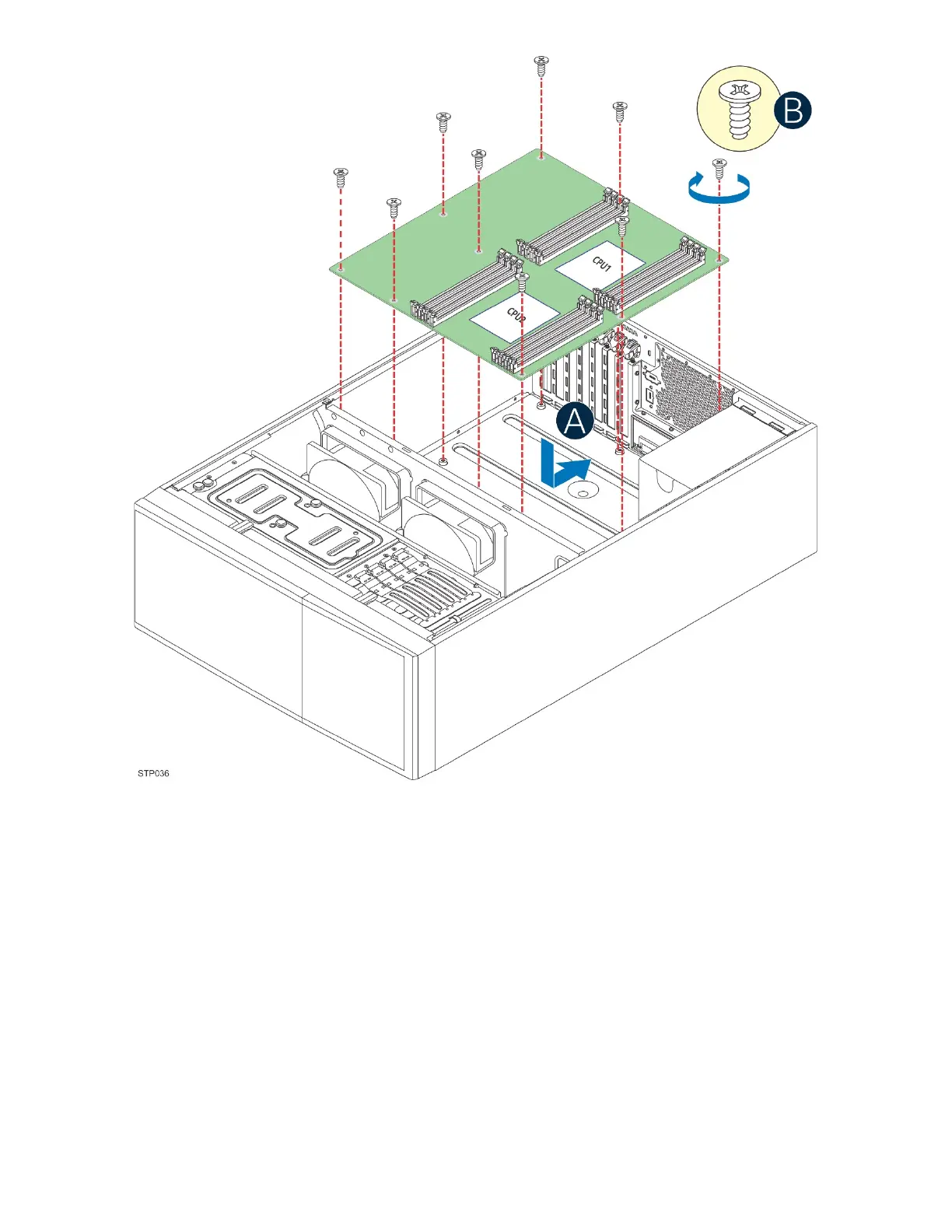

Figure 156. Server Board Installation
1. Carefully move aside any cables around the chassis base to clear the area for server board placement.
2. Carefully lower the server board into the chassis so that the rear I/O connectors of the server board
align with it and are fully seated into the matching holes on the chassis back panel (see letter A).
3. The server board is accurately placed when rear I/O connectors (NIC connectors, USB connectors, and
VGA connector) align with the IO shield openings and properly fit into it.
4. Fasten down the server board with nine screws using 8 in/lbs torque (see letter B).
