2.2.1.2 For S2600ST Server Board Family
Note: For details on DIMM population rules, please refer to the Intel® Server Board S2600ST Product Family
Technical Product Specification.
• Each installed processor provides six memory channels. On the Intel® Server Board S2600ST product
family memory channels for each processor are labeled A – F. Channels A and D on each processor
support two DIMM slots. All other memory channels have one DIMM slot.
• Channels that support more than one DIMM must be populated starting with the BLUE DIMM slot. In
addition, when populating a Quad-rank DIMM with a Single- or Dual-rank DIMM in the same channel,
the Quad-rank DIMM farthest from the processor must be populated .

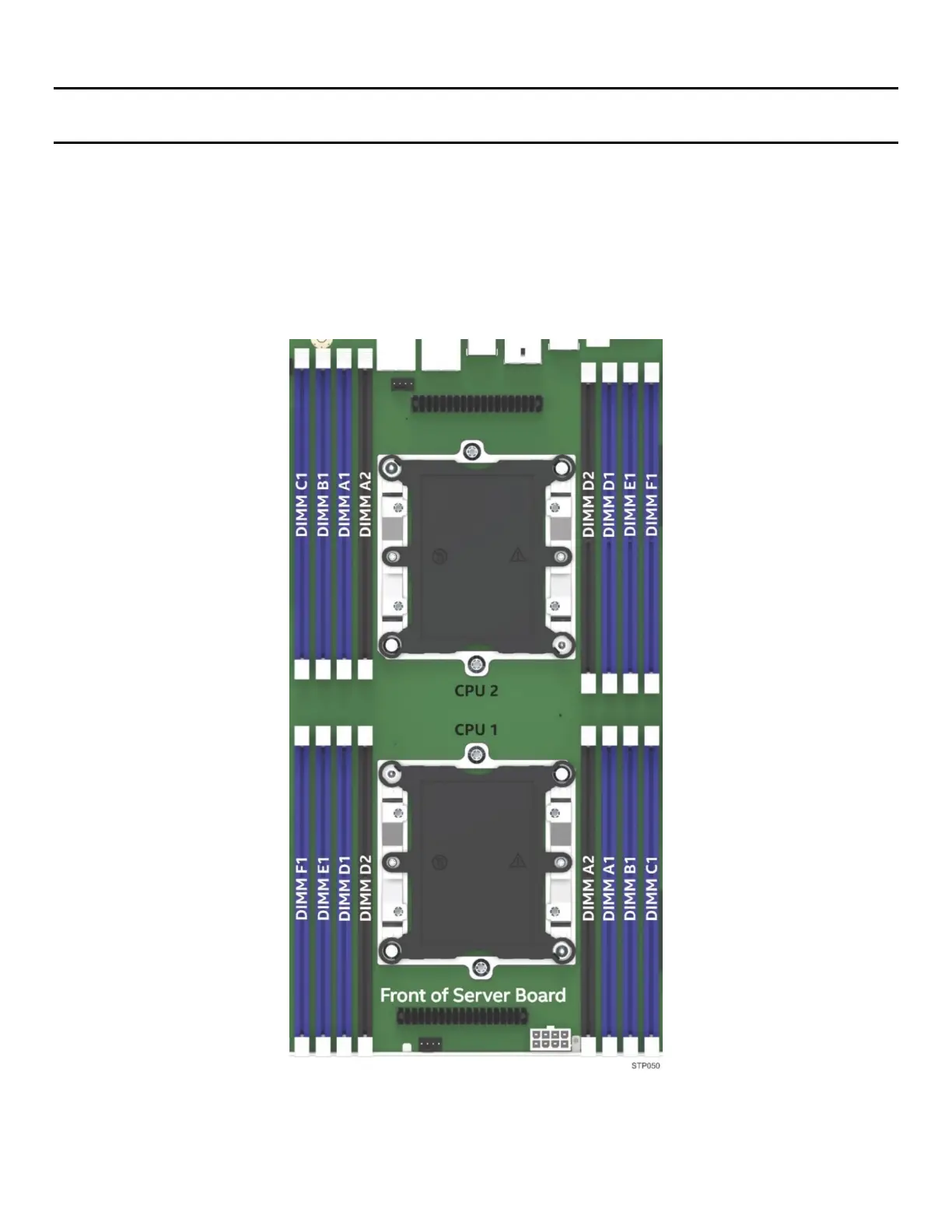

Figure 47. Intel® Server Board S2600ST Product Family Memory Slot Layout
