Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
49
8. Locate the data cable for fixed storage drives (included in the accessory bag inside the chassis)
and connect the cable connections using one of the on-board Mini-SAS HD SATA connectors as
shown in Figure 58. The connector on the left side is connected to the server board; the connector
on the right side is connected to the fixed drive.
MiniSAS
(SVRBD/HSBP)
XXXXXX-XXX
XX YYWW
Drive_3
Drive_2
Drive_1
Drive_0

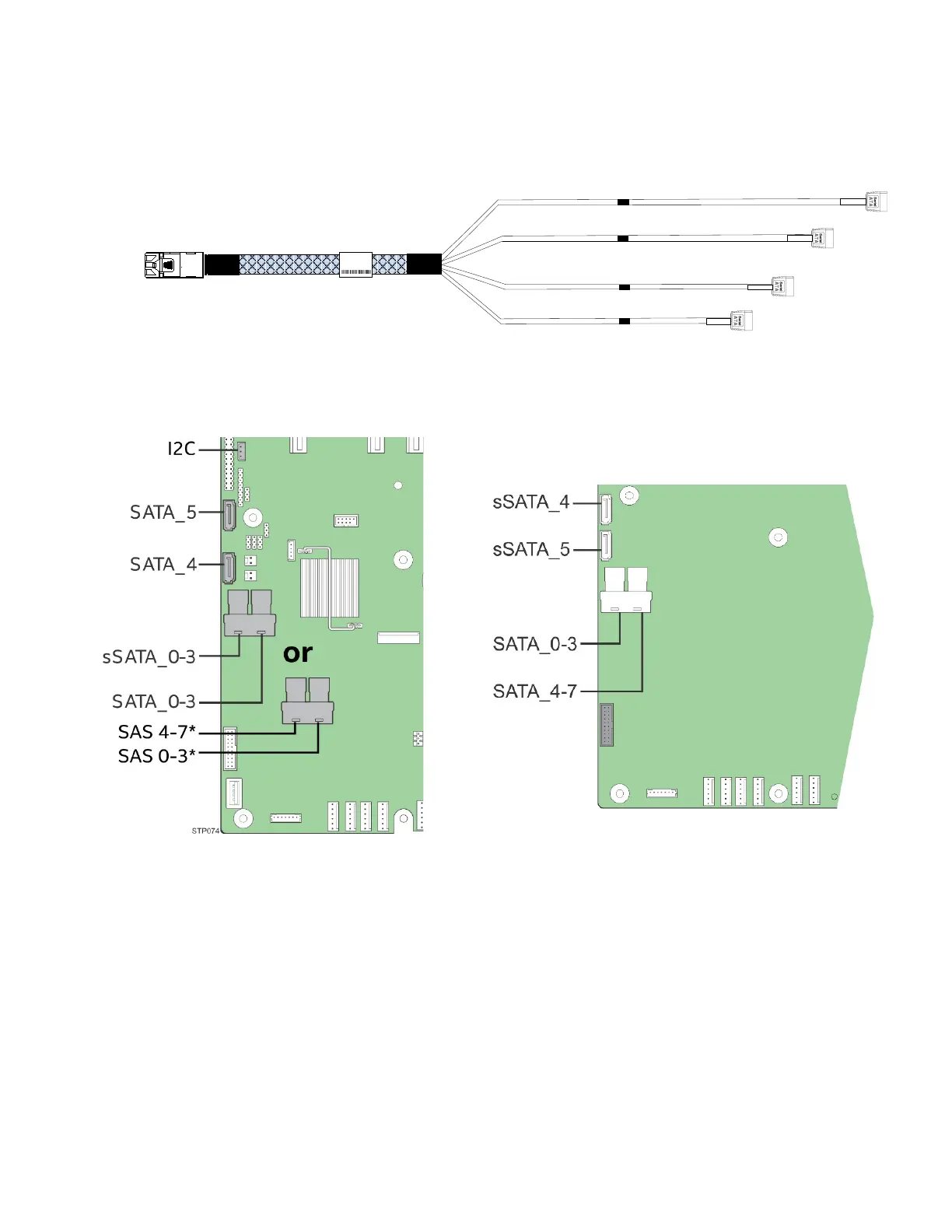

Figure 57. Data Cable for Fixed Storage Drives iPC- AXXCBL450HD7S
Figure 58. Connecting Fixed Drive Data Cables
9. Connect a 7-pin SATA data cable to each installed fixed drive.
10. Connect a SATA power cable from the power distribution board or fixed power supply to each
installed fixed drive.
S2600ST Board Family
S2600CW Board Family
To Next Page
