Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
142

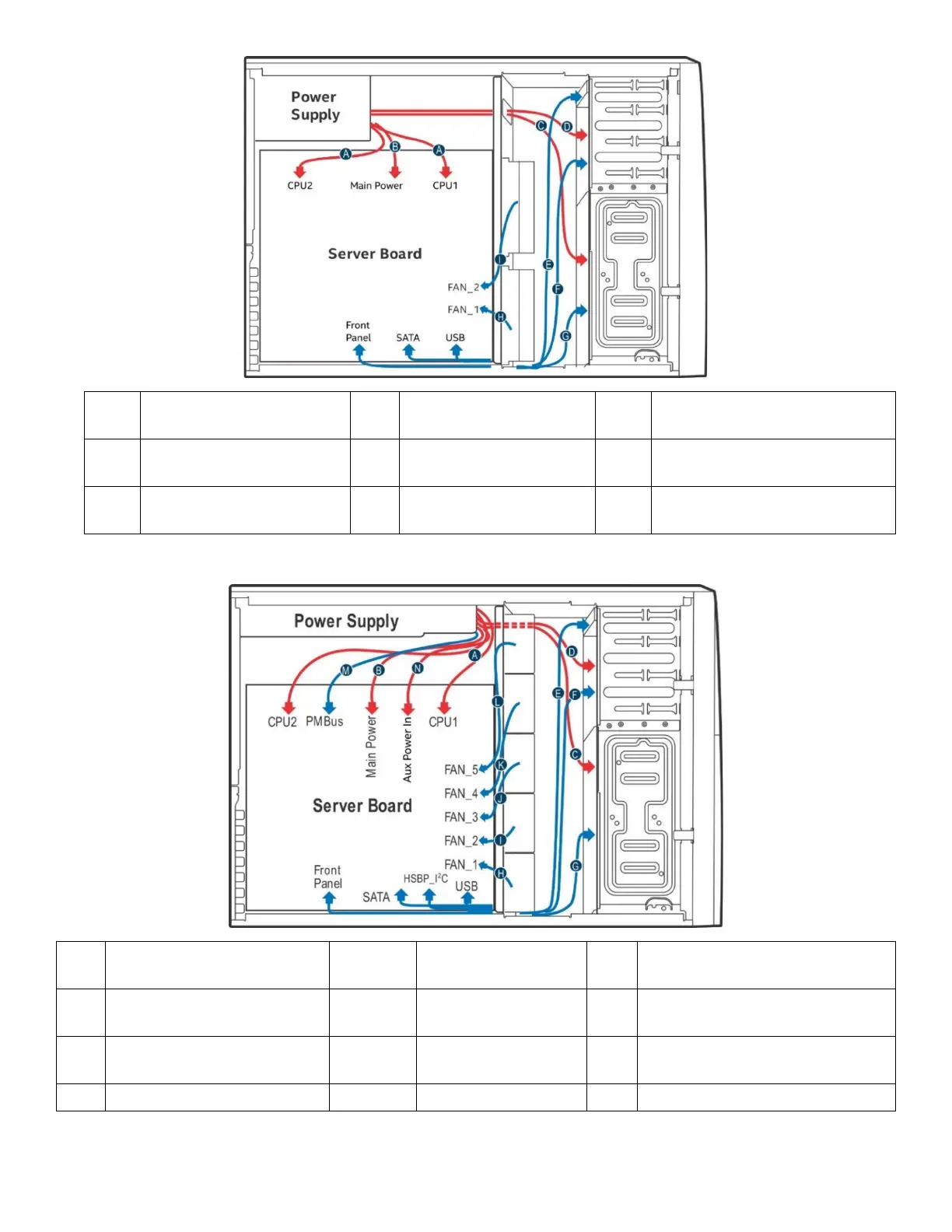

Figure 159. P4304XXMFEN2 Cable Routing - S2600ST Server Board Family
Figure 160. P4304XXMUXX Cable Routing - S2600ST Server Board Family
A CPU1/2 power cable B Main power cable C SSD/HDD drive bay power cable
D ODD drive bay power
E Front panel and USB
F ODD data cable
G SSD/HDD drive bay data
cable (SATA)
H FAN_1 cable (PCIe* fan) I FAN_2 cable (CPU fan)
A CPU1/2 power cable B Main power cable C SSD/HDD drive bay power cable
D ODD drive bay power cable E Front panel and
F ODD data cable
G SSD/HDD drive bay data
H, I, J,
FAN_n cables M PMBus cable
