Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
28
3. Orient the processor with the heat spreader side down so its alignment features match those of
the carrier clip, as shown in the following figures.

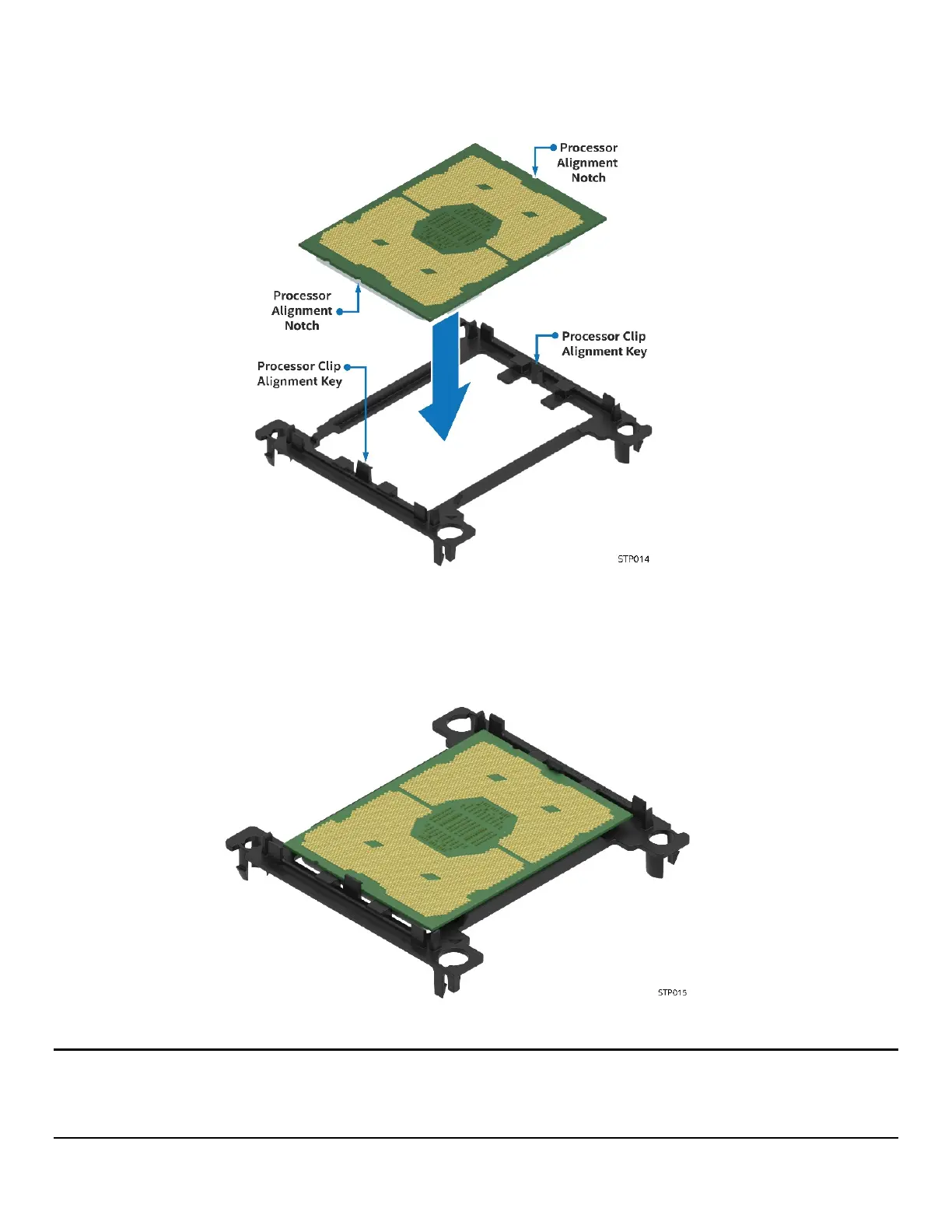

Figure 33. Processor Carrier Clip Assembly
4. Install the processor into the processor carrier clip until it snaps into place.
Figure 34. Processor Carrier Clip Sub-Assembly
CAUTION: A processor can dislodge from the processor carrier clip if you grasp the assembly by the long
narrow edges of the processor clip. Grasp the processor carrier assembly only by using the shorter edges of
the assembly.
