Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
46
2.3.3 Installing a Fixed Mount Drive
The server chassis P4304XXMFEN2 and P4304XXMUXX support four 3.5” fixed drive trays with their default
configuration. Additional fixed drive trays can be purchased (iPC - FUP4X35NHDK) in order to support up to
8 fixed drives.

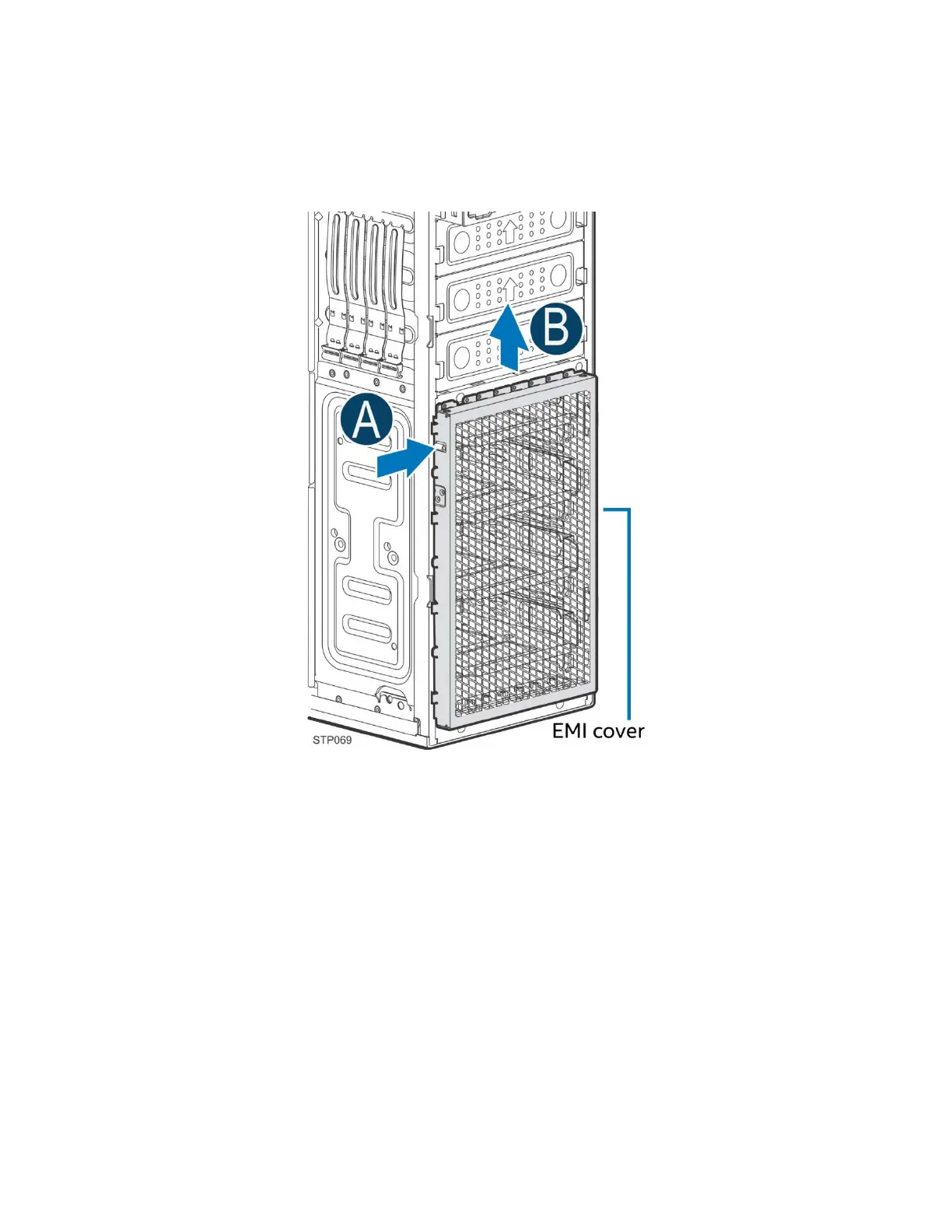

Figure 52. Removing the EMI Cover
To install a fixed drive:
1. Remove the chassis side cover following instructions in Section 1.2.1.
2. Remove the front bezel following instructions in Section 2.3.1.
3. Press the clip to release the EMI cover (see letter A) and lift up until it is removed (see letter B).
