Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
68

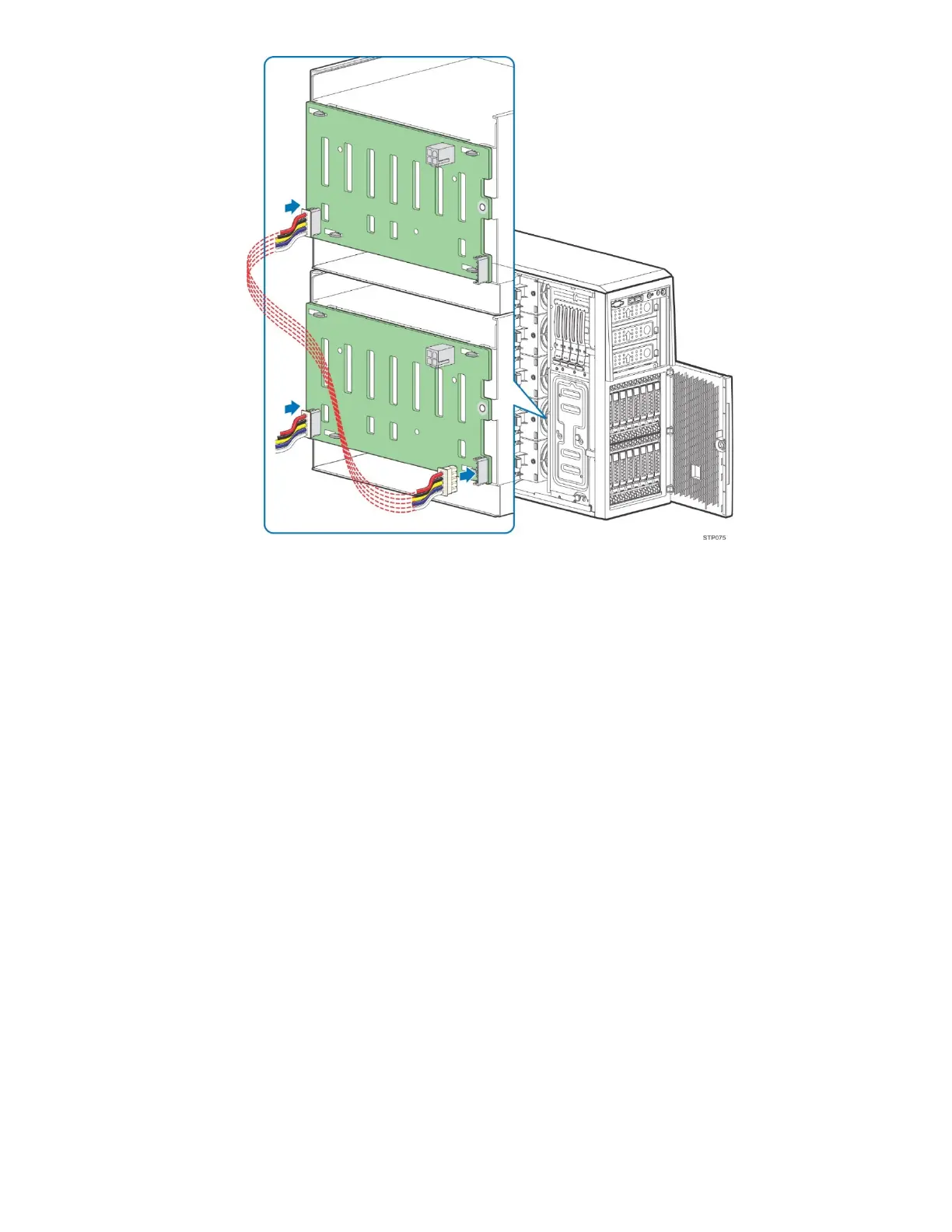

Figure 80. Interconnect Diagram for Two 8x2.5" Hot-Swap Drive Bay Kits – S2600CW Board Family
• S2600ST Server Board Family:
The server board only supports 8 drives connected through the on-board Mini-SAS HD connectors.
Refer to the Intel
®
Server Board S2600ST Product Family Configuration Guide for details on accessories needed
to connect sixteen 2.5 drives.
