Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
30
2.1.2.2 Processor Heat-sink Module Installation
1. Remove the plastic processor socket cover through the following:

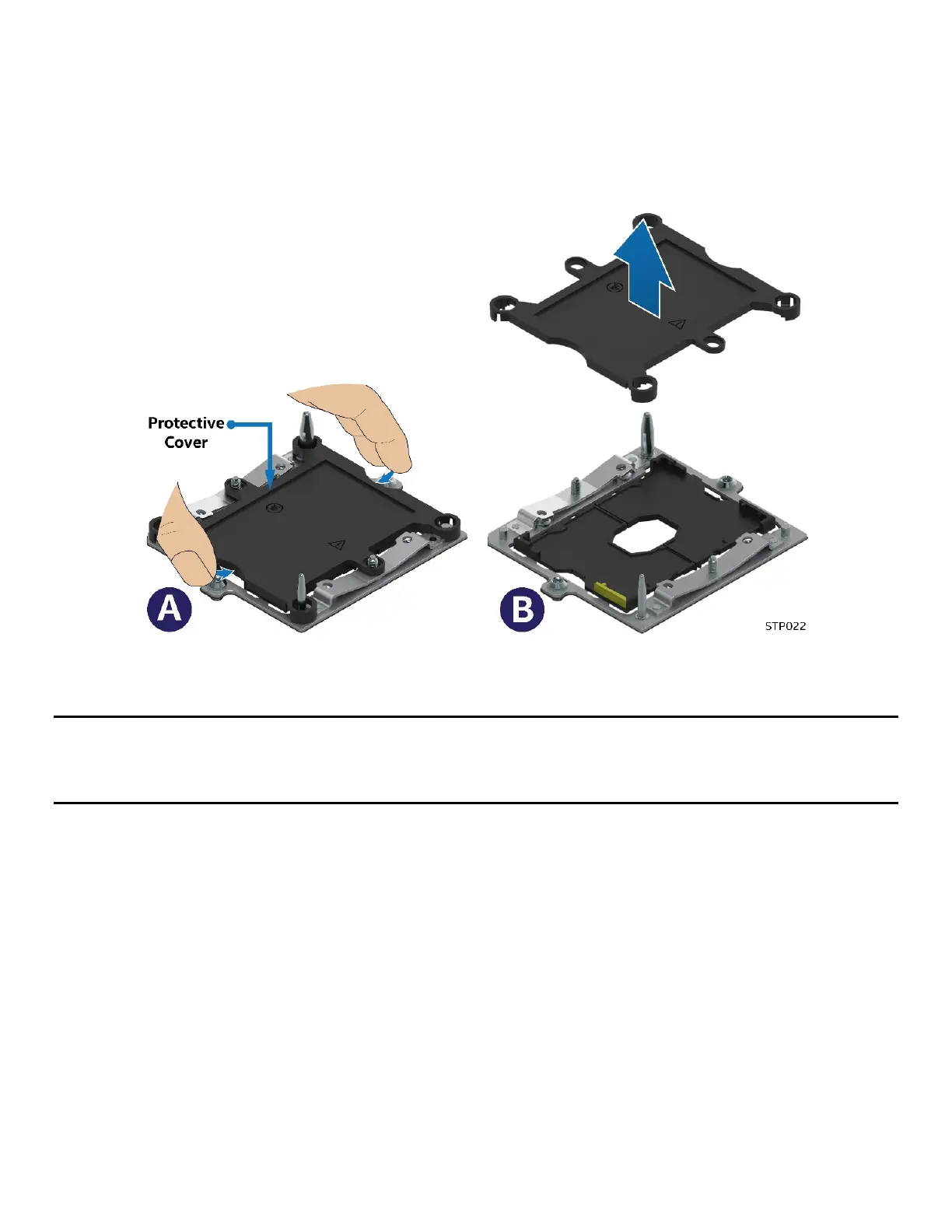

a. Grasp the socket cover using the finger grips on each end as shown in the following figure (see letter
A) then carefully pull up to remove (see letter B).
Figure 37. Removing the Plastic Socket Cover
Note: Save the processor socket cover for future use.
CAUTION: When re-installing the socket cover, make sure it properly snaps into place. Improper installation
will cause it to become loose and damage the processor socket.
