Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
71
2.3.8.4 Option to Install a 2.5” SSD into a 3.5” Carrier
The 3.5” drive blank can be used as a 2.5” SSD bracket.

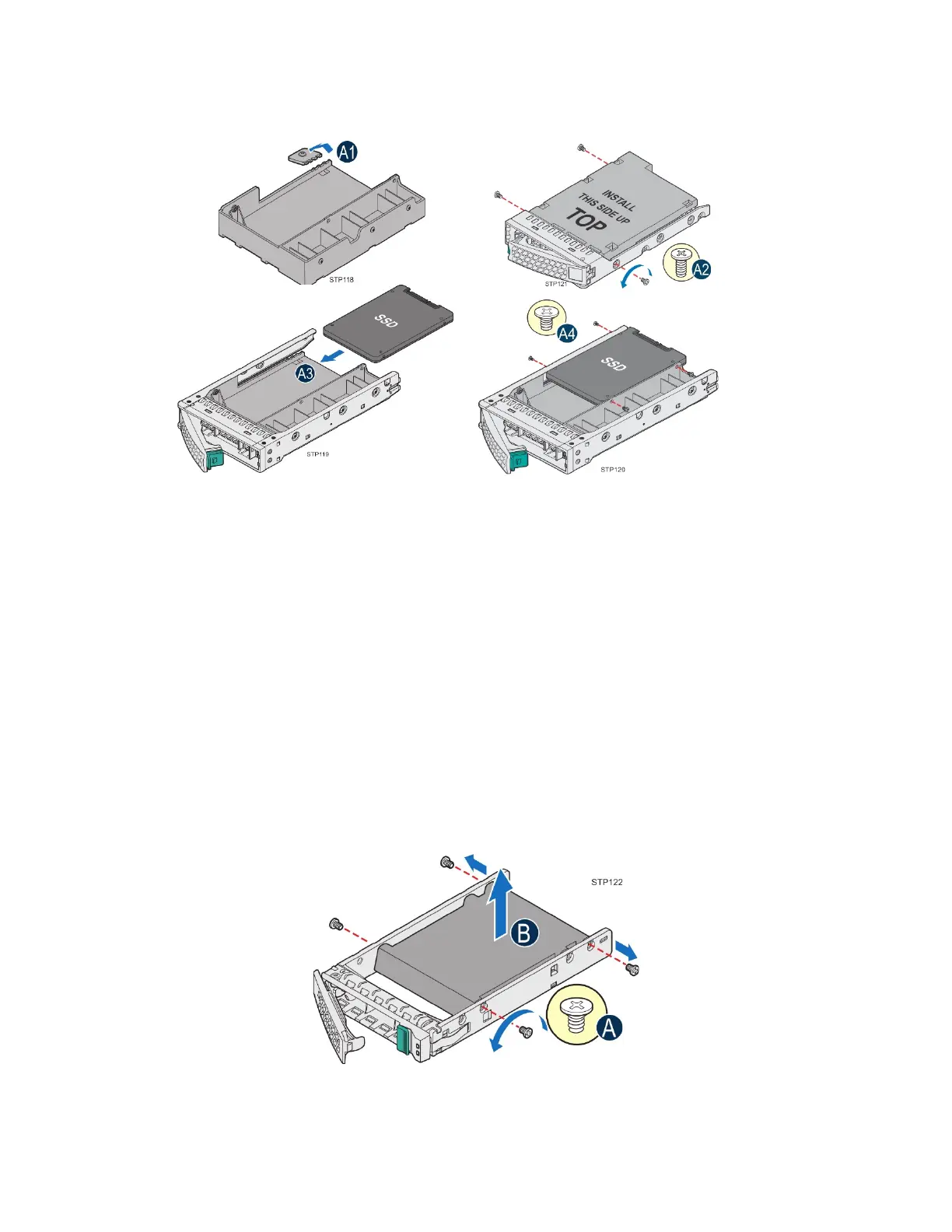

Figure 85. Option to Install a 2.5” SSD into a 3.5” Carrier
1. Remove the drive blank from the device carrier (see previous page).
2. Break off the small side tab from the drive blank, making the drive blank into a device bracket (see
letter A1).
3. Install the device bracket into the device carrier so that the hollow side of the device bracket is
facing down.
4. Secure the device bracket with three screws (see letter A2).
5. Turn over the carrier assembly.
6. Slide a 2.5" SSD into the device bracket and align the screw holes with the right and left rail (see
letter A3).
7. Secure the device using four screws (see letter A4).
2.3.8.5 2.5” Hard Disk Drive (HDD) / SoIid State Device (SSD) Installation
Figure 86. 2.5” Storage Device Installation – Removing the Drive Blank
1. Remove the four screws securing the plastic drive blank to the carrier (see letter A).
2. Remove the drive blank from the carrier (see letter B).
