7.1.2 System Fan Assembly Installation
To Install the Hot-Swap System Fan on P4304XXMUXX

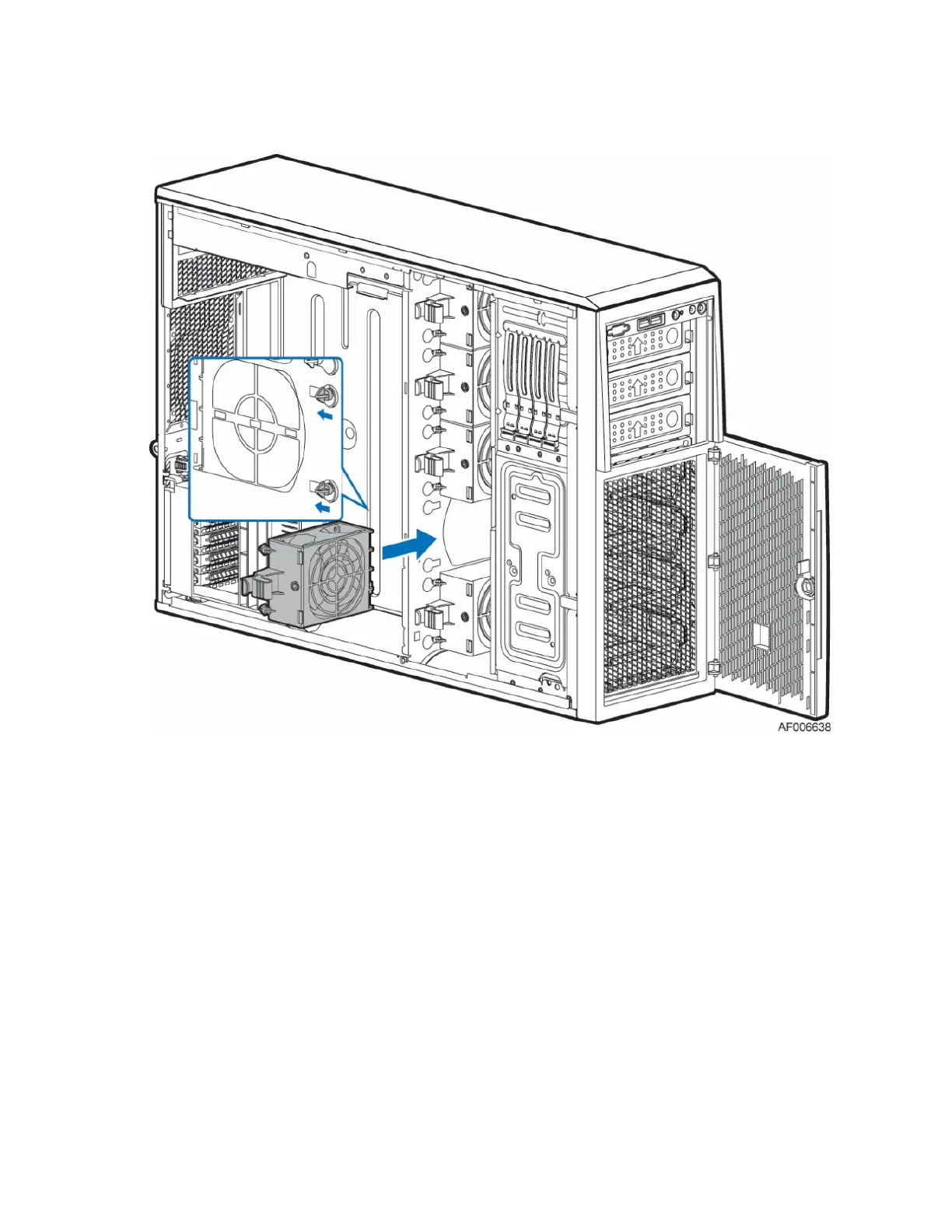

Figure 145. Hot-Swap System Fan Installation
1. Align the two guide pins on the top back side of the fan with the key slots located on the fan
bracket.
2. Carefully lower the fan so the guide pins slide lower into the openings.
3. Continue to push down the fan until the latch on the top of the fan clicks and locks the fan in
place.
