1.2.7 1600W Power Supply Installation (P4304XXMUXX chassis)
Before inserting the 1600W power supply into the chassis, the power distribution board must be moved
from its default position.

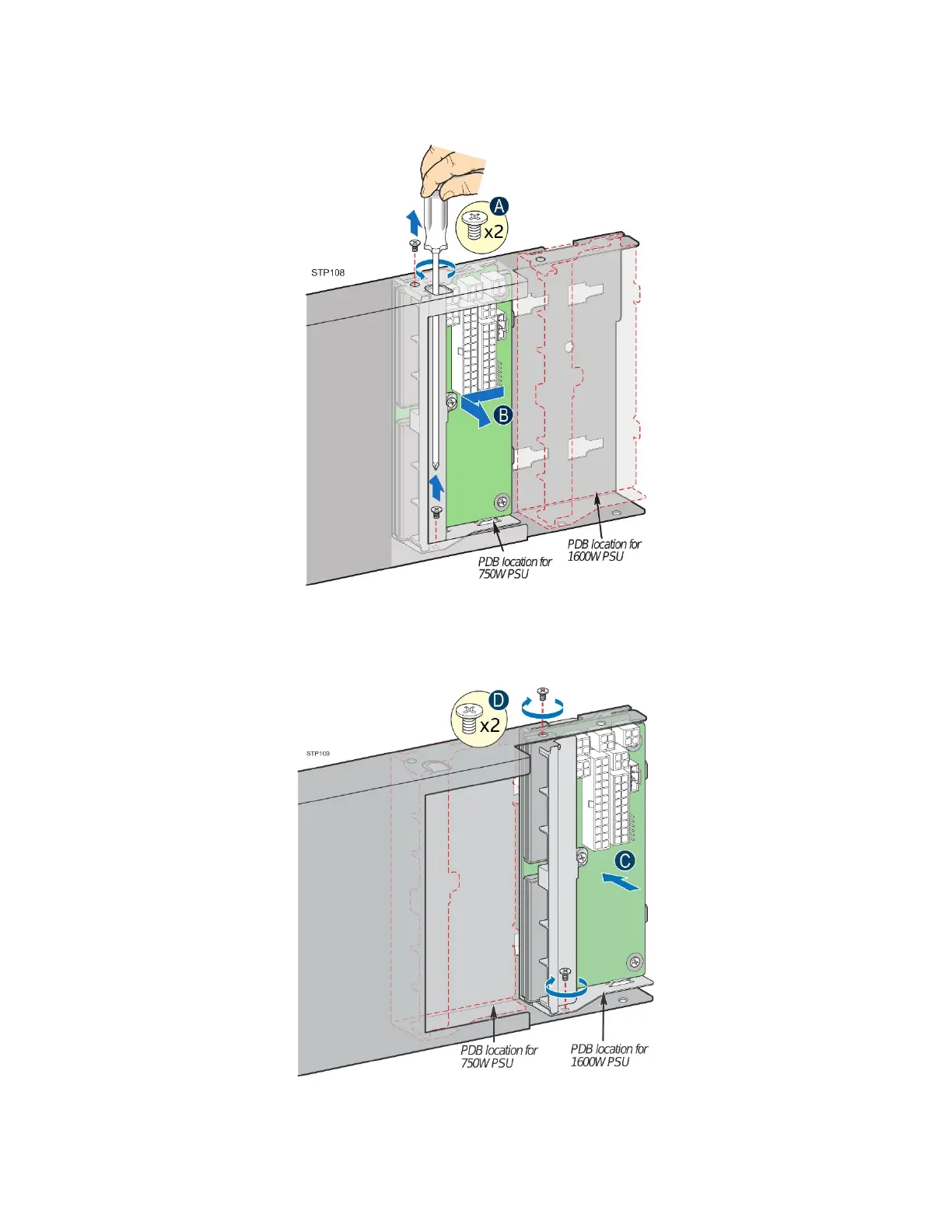

Figure 14. PDB Location for 750W PSU
1. Release the two screws that secure the power distribution board to the chassis (see letter A).
2. Remove the power distribution board from its default location (see letter B).
Figure 15. PDB Location for 1600W PSU
3. Install the power distribution board in the location for 1600W PSU (see letter C).
4. Secure the power distribution board to the chassis with the two screws (see letter D).
