Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
34
2.1.2.3 Processor Heat-sink Module Removal
WARNING: Processor heat-sinks can become extremely hot during normal system operation. Before
attempting to remove the processor from the server board, ensure that system power has been fully
disconnected and allow the processor heat sinks to fully cool before attempting to remove the PHM from the
server board.
1. Using a T30 Torx bit screwdriver, loosen each heat sink fastener in the sequence shown on the
label affixed to the top side of the heat sink (#4 - #3 - #2 - #1). (See letter A).
2. Lift the PHM straight up from the server board until it is free from the bolster plate guide pins (See
letter B).

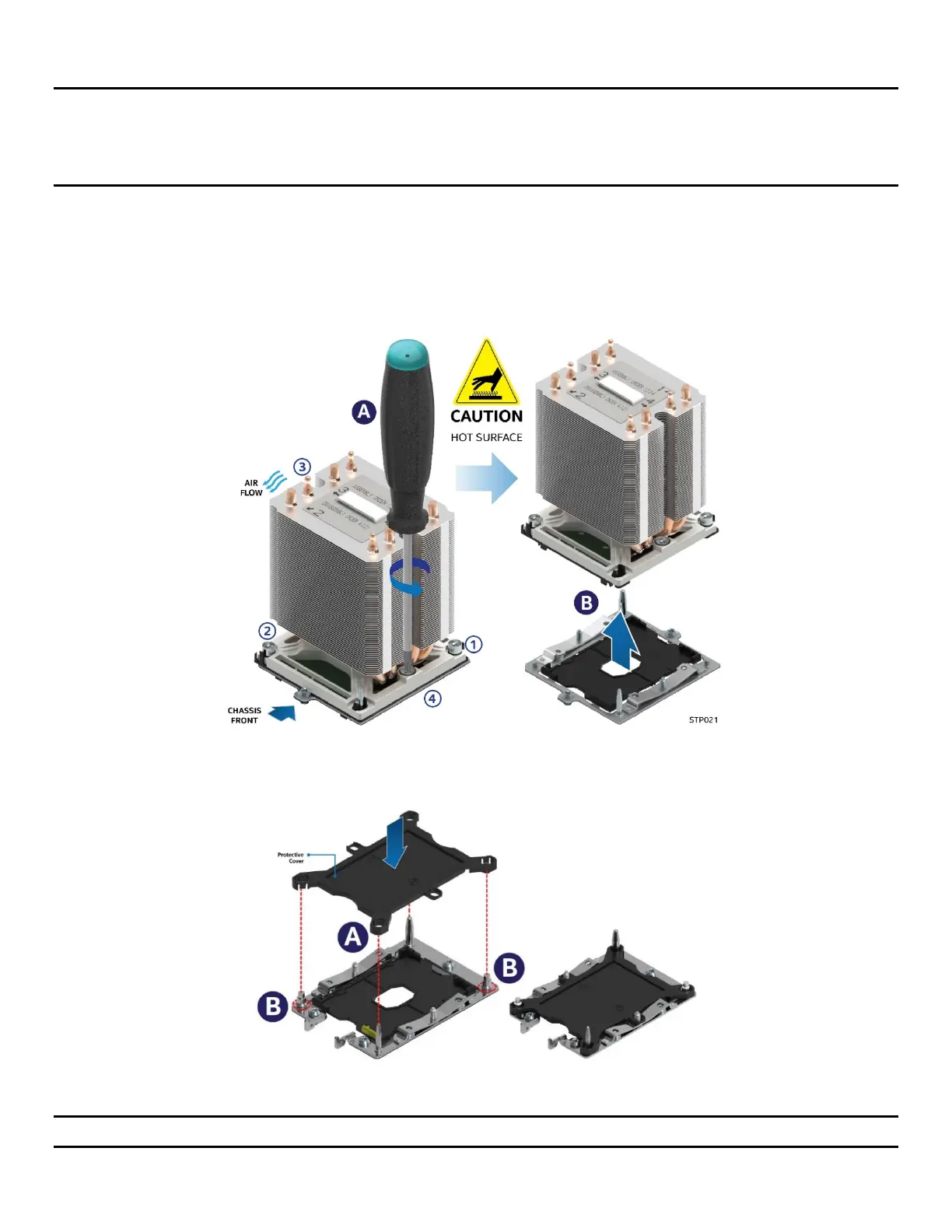

Figure 41. Uninstalling the PHM
3. If a processor is not being installed, re-install the plastic processor socket cover.
Figure 42. Plastic Socket Cover installation
Note: The bolster plate may be different from the picture ; the steps and procedure are the same.
