Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
9
1.2.3 Installing the IO Shield
Note: The IO shield can be found in the server board package or can be ordered separately.

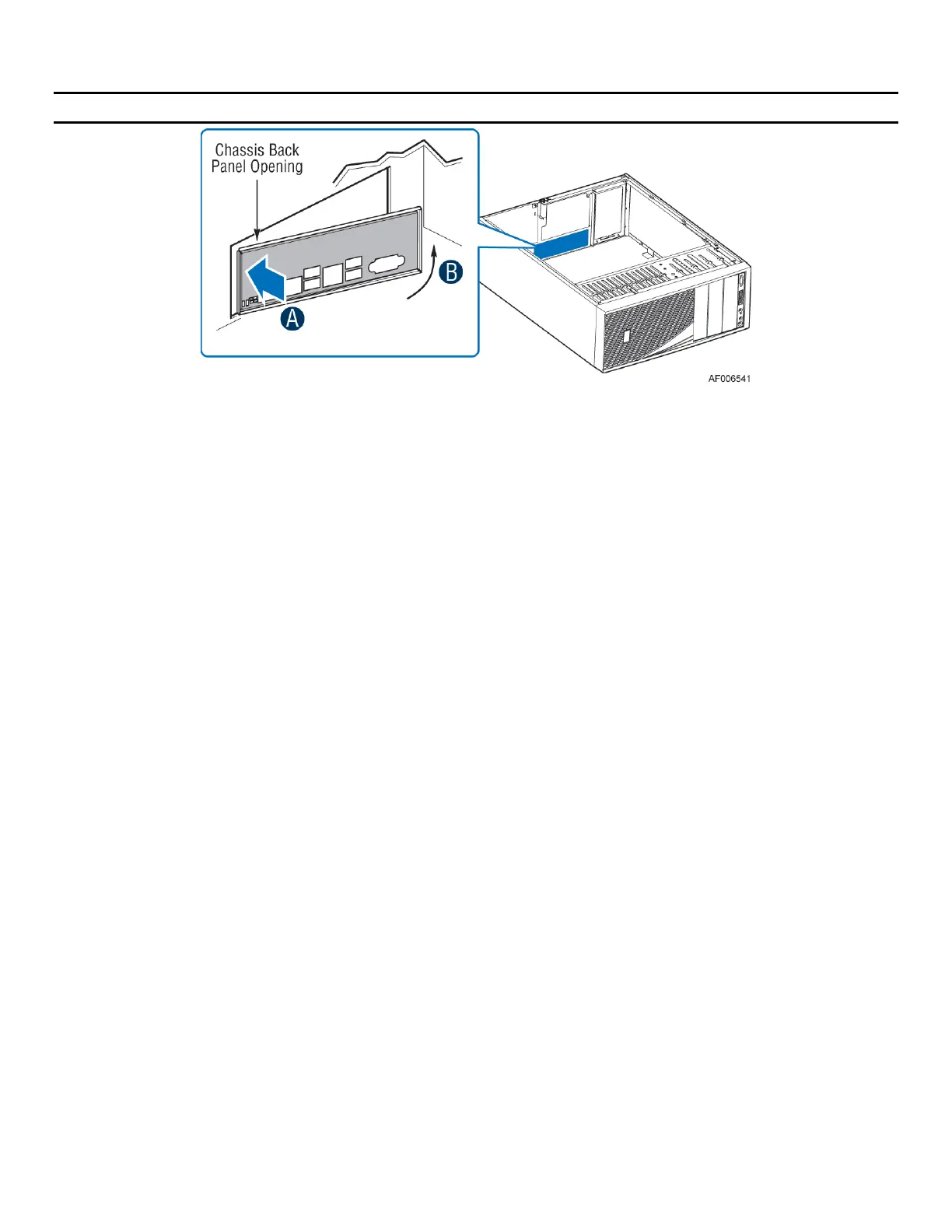

Figure 9. Installing the I/O Shield
1. From the chassis inner side, align the IO shield with the chassis rear IO opening.
2. Press the IO shield firmly to the chassis rear IO opening until it clicks into place. To make the
process easier, install one end of the IO shield first (see letter A) and finish by pressing the other
end (see letter B).
