Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
64
2.3.6 Upgrading the Fixed Drive Storage to 8x3.5” Hot-Swap Drive Bay Storage
The server chassis can support two 4x3.5” Hot-Swap drive bays as an upgrade option from fixed drive
storage.
1. Prepare the chassis by following Steps 1-4 in Section 2.3.4.
2. Slide the first 4x3.5” Hot-Swap drive bay to the upper/right drive bay position.
3. Slide the second 4x3.5” Hot-Swap drive bay to the lower/left drive bay position (see letter A).
4. Secure the drive bay with the thumb screw (included on the Hot Swap Drive Bay Kit (see letter B).

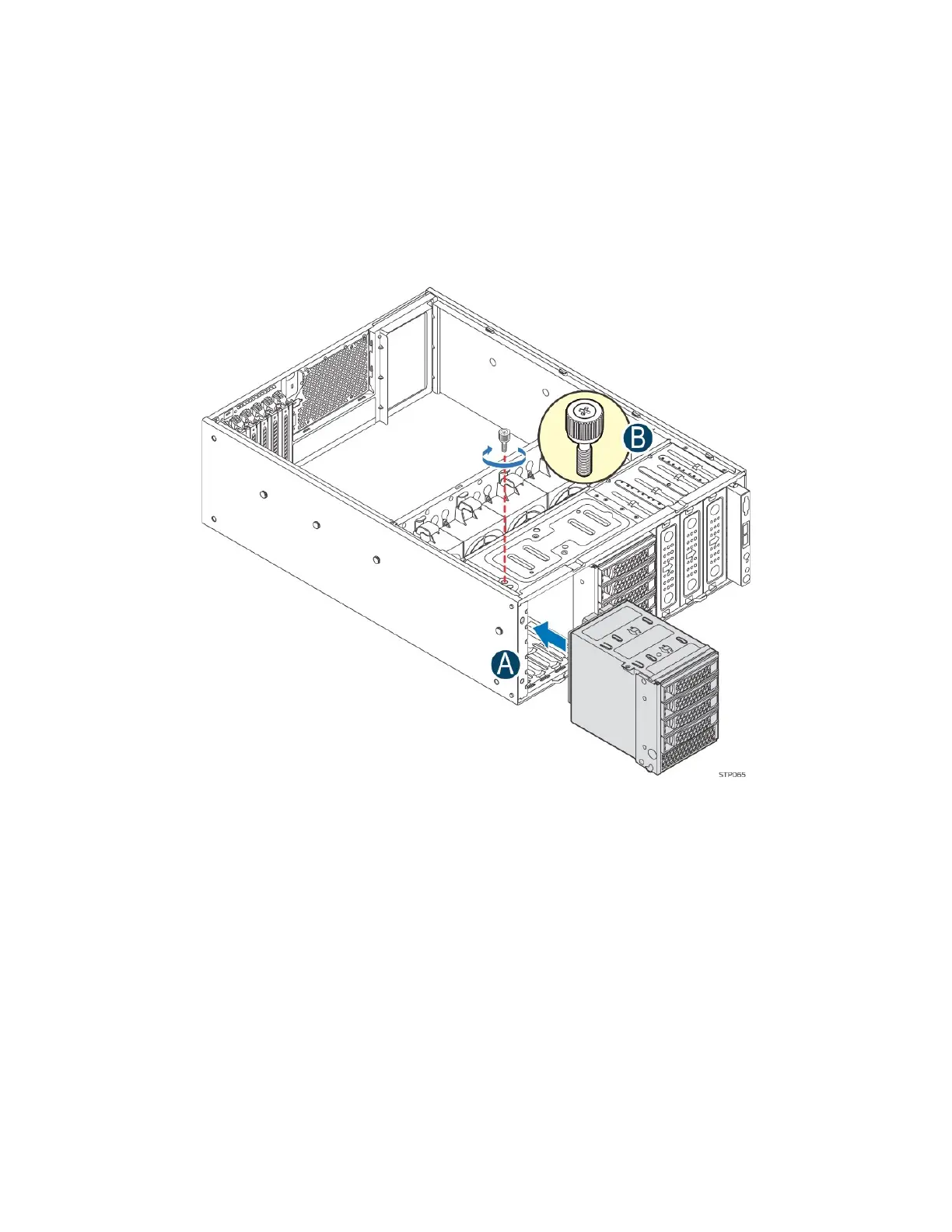

Figure 76. Installing Two 4x3.5” Hot-Swap Drive Bay Kits
5. Follow Steps 8 and 9 in Section 2.3.4 in order to connect the Mini-SAS HD cables for each of the
drive bay kits.
